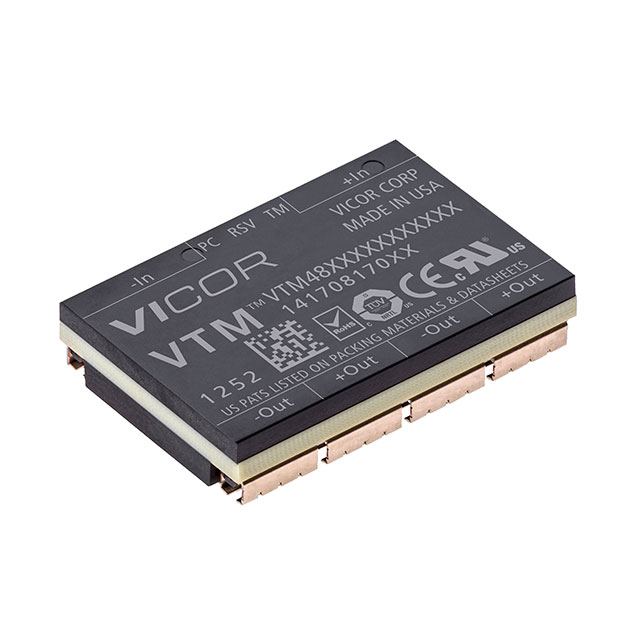

VTM48ET120T025A00

Active

Vicor Corporation

DC DC CONVERTER 12V 300W

Search across all available documentation for this part.

Active

Vicor Corporation

DC DC CONVERTER 12V 300W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VTM48ET120T025A00	VTM48ET120 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	25 A	25 A
Efficiency	96 %	96 %
Features	Remote On/Off	OVP, OTP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-55 - -40 °C
Package / Case	Module	Module
Power (Watts)	300 W	300 W
Size / Dimension [x]	1.28 in	1.28 in
Size / Dimension [x]	32.5 mm	32.5 mm
Size / Dimension [y]	22 mm	22 mm
Size / Dimension [y]	0.87 in	0.87 in
Size / Dimension [z]	6.7 mm	6.7 mm
Size / Dimension [z]	0.26 "	0.26 "
Type	Voltage Transformation Module	Voltage Transformation Module
Voltage - Input (Min) [Min]	26 V	26 V
Voltage - Isolation	2250 VDC	2250 VDC
Voltage - Output 1	12 V	12 V

DC DC CONVERTER 12V 300W

Part	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Power (Watts)	Mounting Type	Voltage - Output 1	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Input (Min) [Min]	Package / Case	Voltage - Isolation	Number of Outputs	Applications
Vicor Corporation VTM48ET120M025A00	Voltage Transformation Module	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	96 %	300 W	Through Hole	12 V	25 A	-55 °C	125 °C	OCP, OTP, OVP, Remote On/Off, SCP	26 V	Module	2250 VDC	1	ITE (Commercial)
Vicor Corporation VTM48ET120T025A00	Voltage Transformation Module	6.7 mm	0.26 "	1.28 in	22 mm	0.87 in	32.5 mm	96 %	300 W	Through Hole	12 V	25 A	-40 °C	125 °C	Remote On/Off	26 V	Module	2250 VDC	1	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Voltage Transformation Module DC DC Converter 1 Output 12V 25A 26V - 55V Input
