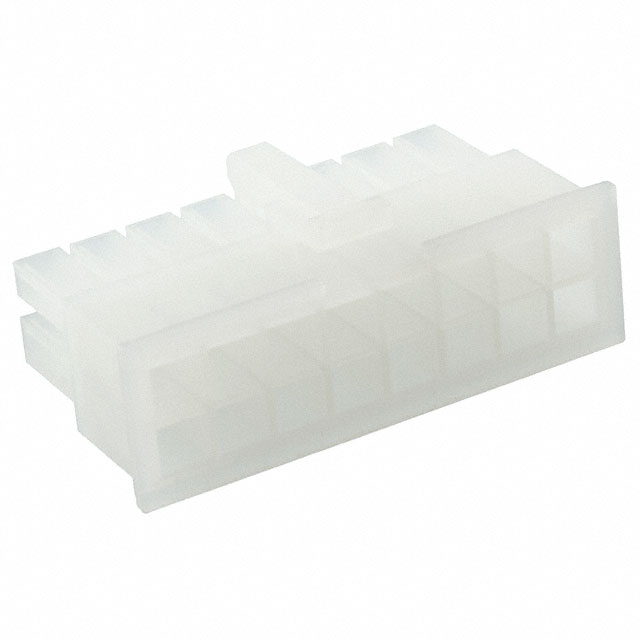

1-794954-6
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 16POS 4.20MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-794954-6 | 794954 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 2 - 22 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 4.2 mm | 4.2 mm |
| Pitch [x] | 0.165 in | 0.165 in |
| Row Spacing | 4.2 mm | 4.2 mm |
| Row Spacing | 0.165 in | 0.165 in |
794954 Series
CONN RCPT HSG 2POS
| Part | Insulation Material | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Positions | Mounting Type | Fastening Type | Connector Type | Row Spacing | Row Spacing | Contact Termination | Color | Note | Pitch [x] | Pitch [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794954-2 | Nylon, Polyamide (PA) | 2 | -40 °C | 105 ░C | Female Socket | 2 | Free Hanging (In-Line) | Latch Lock | Receptacle | 4.2 mm | 0.165 in | Crimp | Natural | Contacts Not Included | |||
TE Connectivity AMP Connectors 2-794954-2 | Nylon, Polyamide (PA) | 2 | -40 °C | 105 ░C | Female Socket | 22 positions | Free Hanging (In-Line) | Latch Lock | Receptacle | 4.2 mm | 0.165 in | Crimp | Natural | Contacts Not Included | 4.2 mm | 0.165 in | |
TE Connectivity AMP Connectors 1-794954-6 | Nylon, Polyamide (PA) | 2 | -40 °C | 105 ░C | Female Socket | Free Hanging (In-Line) | Latch Lock | Receptacle | 4.2 mm | 0.165 in | Crimp | Natural | Contacts Not Included | 4.2 mm | 0.165 in | 16 | |
TE Connectivity AMP Connectors 1-794954-2 | Nylon, Polyamide (PA) | 2 | -40 °C | 105 ░C | Female Socket | 12 | Free Hanging (In-Line) | Latch Lock | Receptacle | 4.2 mm | 0.165 in | Crimp | Natural | Contacts Not Included | 4.2 mm | 0.165 in | |
TE Connectivity AMP Connectors 1-794954-0 | Nylon, Polyamide (PA) | 2 | -40 °C | 105 ░C | Female Socket | 10 | Free Hanging (In-Line) | Latch Lock | Receptacle | 4.2 mm | 0.165 in | Crimp | Natural | Contacts Not Included | 4.2 mm | 0.165 in | |
TE Connectivity AMP Connectors 794954-8 | Nylon, Polyamide (PA) | 2 | -40 °C | 105 ░C | Female Socket | 8 | Free Hanging (In-Line) | Latch Lock | Receptacle | 4.2 mm | 0.165 in | Crimp | Natural | Contacts Not Included | 4.2 mm | 0.165 in |
