Q-200520003108i

Active

Amphenol Custom Cable

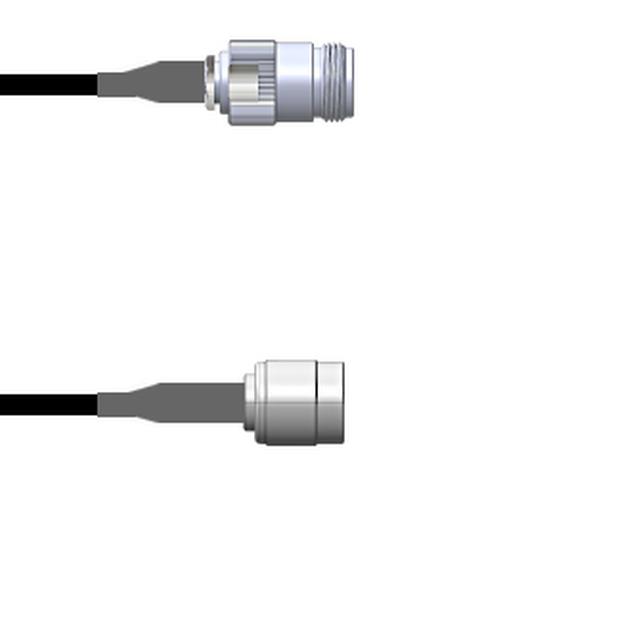

CBL ASSY NTYPE-TNC JACK-PLUG 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-200520003108i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-PLUG 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-200520003108i

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms

Q-200520 Series

Part	1st Connector	2nd Contact Gender	2nd Connector	2nd Connector Mounting Type	Overall Impedance	1st Connector Mounting Type	1st Contact Gender	Length	Length	Color	Frequency - Max [Max]	Cable Type	Features	Length
Amphenol Custom Cable Q-200520005024i	N-Type Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	24 "	609.6 mm	Copper	11 GHz	RG-316	Shielded
Amphenol Custom Cable Q-200520005009i	N-Type Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	9 "	228.6 mm	Copper	11 GHz	RG-316	Shielded
Amphenol Custom Cable Q-200520003009i	N-Type Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	9 "	228.6 mm	Black	11 GHz	RG-174	Shielded
Amphenol Custom Cable Q-200520005108i	N-Type Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	108 in	2.7 m	Copper	11 GHz	RG-316	Shielded	9 ft
Amphenol Custom Cable Q-200520003108i	N-Type Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	108 in	2.7 m	Black	11 GHz	RG-174	Shielded	9 ft
Amphenol Custom Cable Q-200520005072i	N-Type Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	72 in	1.8 m	Copper	11 GHz	RG-316	Shielded	6 ft
Amphenol Custom Cable Q-200520003024i	N-Type Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	24 "	609.6 mm	Black	11 GHz	RG-174	Shielded
Amphenol Custom Cable Q-200520005036i	N-Type Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	36 in	91.44 cm	Copper	11 GHz	RG-316	Shielded
Amphenol Custom Cable Q-200520003003i	N-Type Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	3 in	76.2 mm	Black	11 GHz	RG-174	Shielded
Amphenol Custom Cable Q-200520003084i	N-Type Jack	Male	TNC Plug	Free Hanging (In-Line)	50 Ohms	Free Hanging (In-Line)	Female	84 in	2.1 m	Black	11 GHz	RG-174	Shielded	7 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 51.42
		25	$ 50.41
		50	$ 49.41
		100	$ 48.41
		250	$ 47.40

Description

General part information

Q-200520 Series

Cable Assembly Coaxial N-Type to TNC RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
