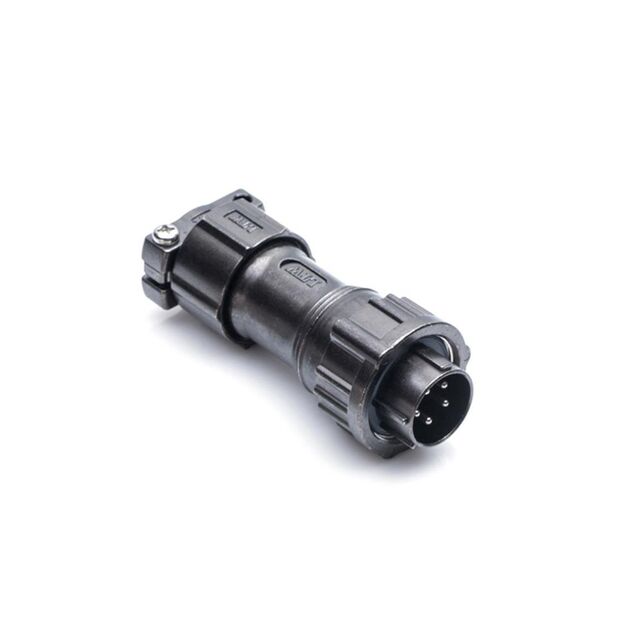

LD20-10BFMA-SL8001
ActiveAmphenol LTW
HEAVY DUTY SHIELDED, M20, 5A, 10
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LD20-10BFMA-SL8001 |
|---|---|
| Cable Opening [Max] [custom] | 12.5 mm |
| Cable Opening [Max] [custom] | 0.492 in |
| Cable Opening [Min] [custom] | 0.217 in |
| Cable Opening [Min] [custom] | 5.5 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Features | Coupling Nut, Cable Clamp |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert [custom] | M20-10 |
| Shielding | Shielded |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.11 | |
| 10 | $ 27.24 | |||
| 25 | $ 26.07 | |||
| 50 | $ 25.22 | |||
| 100 | $ 24.38 | |||
| 250 | $ 23.04 | |||
Description
General part information
LD20-10BFMA Series
10 Position Circular Connector Plug, Male Pins Solder Cup
