TE3-1A-DC-1-RL

Active

Switch Components

SWITCH TOGGLE SPST 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPST 20A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.88

General part information

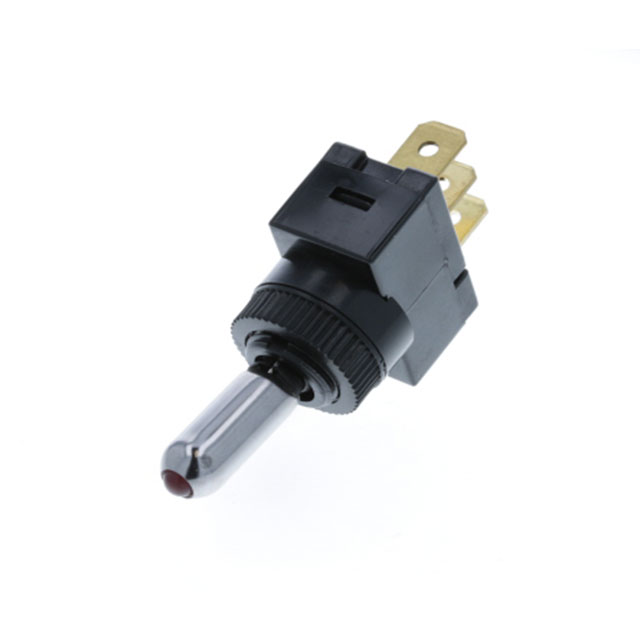

Toggle Switch SPST Panel Mount

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TE3-1A-DC-1-RL	TE3-1A Series

Actuator Length [x]	19.3 mm	19.3 mm
Actuator Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Actuator Type	Standard Round	Standard Round
Bushing Thread	M12	M12
Bushing Thread	1 x 1	1 x 1
Circuit	SPST	SPST
Current Rating (Amps)	20 A	20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination	Illuminated	Illuminated
Illumination Type, Color	Red, LED	LED, Green, Red, Blue, Amber
Illumination Voltage (Nominal)	12 VDC	12 VDC
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH TOGGLE SPST 20A 12V

Part	Actuator Length [x]	Electrical Life	Actuator Material	Circuit	Illumination	Switch Function	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Illumination Type, Color	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Bushing Thread	Bushing Thread	Current Rating (Amps)	Termination Style	Illumination Voltage (Nominal)
Switch Components TE3-1A-DC-1-GL	19.3 mm	6000 Cycles	Nylon, Polyamide (PA)	SPST	Illuminated	On-Off	12 V	12.2 mm	Green, LED	Standard Round	-25 °C	85 °C	M12	1 x 1	20 A	Quick Connect - 0.250" (6.3mm)	12 VDC
Switch Components TE3-1A-DC-1-RL	19.3 mm	6000 Cycles	Nylon, Polyamide (PA)	SPST	Illuminated	On-Off	12 V	12.2 mm	LED, Red	Standard Round	-25 °C	85 °C	M12	1 x 1	20 A	Quick Connect - 0.250" (6.3mm)	12 VDC
Switch Components TE3-1A-DC-1-UL	19.3 mm	6000 Cycles	Nylon, Polyamide (PA)	SPST	Illuminated	On-Off	12 V	12.2 mm	Blue, LED	Standard Round	-25 °C	85 °C	M12	1 x 1	20 A	Quick Connect - 0.250" (6.3mm)	12 VDC
Switch Components TE3-1A-DC-1-AL	19.3 mm	6000 Cycles	Nylon, Polyamide (PA)	SPST	Illuminated	On-Off	12 V	12.2 mm	Amber, LED	Standard Round	-25 °C	85 °C	M12	1 x 1	20 A	Quick Connect - 0.250" (6.3mm)	12 VDC
