86308-1

Active

TE Connectivity AMP Connectors

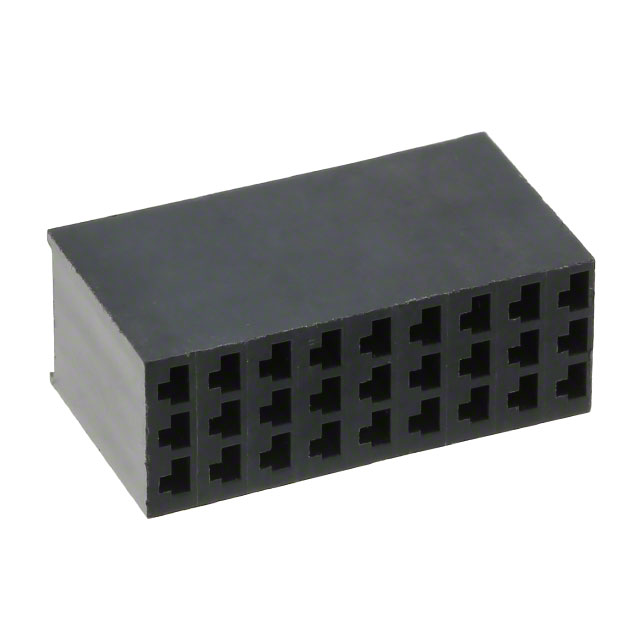

CONN RCPT HSG 27POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 27POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	86308-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	27
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in

CONN RCPT HSG 27POS 2.54MM

Part	Contact Termination	Note	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Positions	Mounting Type	Color	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Contact Type
TE Connectivity AMP Connectors 86308-1	Crimp	Contacts Not Included	Receptacle	3	-65 ░C	105 ░C	Glass Filled, Nylon, Polyamide (PA)	27	Free Hanging (In-Line)	Black	0.1 in	2.54 mm	2.54 mm	0.1 in	Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3200	$ 4.52

General part information

27 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
