9003-9213-002

Active

Radiall USA, Inc.

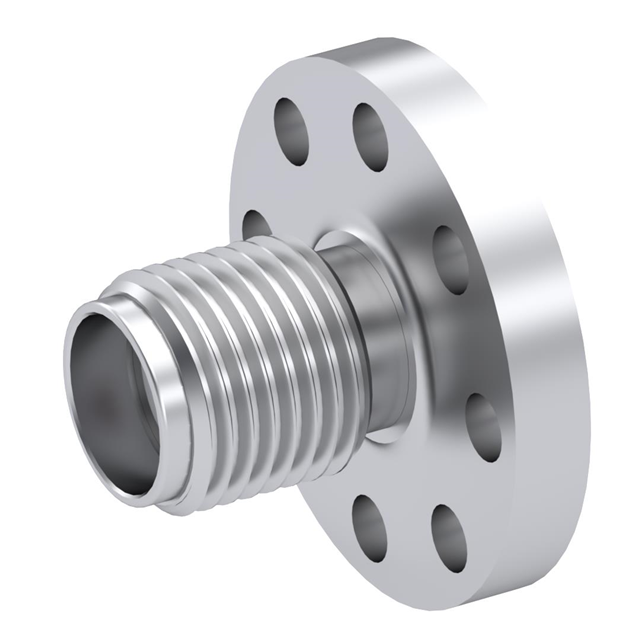

SMA / STRAIGHT JACK RECEPTACLE F

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA / STRAIGHT JACK RECEPTACLE F

Technical Specifications

Parameters and characteristics for this part

Specification	9003-9213-002

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw

Part	Frequency - Max [Max]	Center Contact Plating	Center Contact Material	Connector Type	Dielectric Material	Impedance	Body Material	Mating Cycles	Shield Termination	Housing Color	Mounting Feature	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Contact Termination
Radiall USA, Inc. 9003-9213-002	18 GHz	Gold	Beryllium Copper	Female Socket Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	Stainless Steel	500	Screw	Silver	Flange	SMA	-65 ░C	165 °C	1	Solder
Radiall USA, Inc. 9003-9213-003	18 GHz	Gold	Beryllium Copper	Female Socket Jack	Polytetrafluoroethylene (PTFE)	50 Ohms	Stainless Steel	500	Screw	Silver	Flange	SMA	-65 ░C	165 °C	1	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 17.74

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
