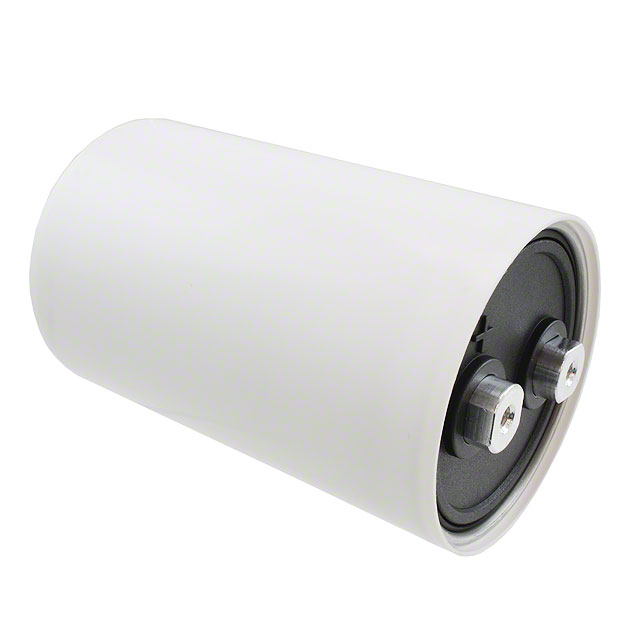

PEH200YU433CMB2

Active

KEMET

CAP ALUM 3300UF 20% 450V SCREW

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 3300UF 20% 450V SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	PEH200YU433CMB2

Applications	General Purpose
Capacitance	3.3 mF
ESR (Equivalent Series Resistance)	30 mOhm
Height - Seated (Max) [Max]	119 mm
Height - Seated (Max) [Max]	4.685 in
Impedance	17 mOhms
Lead Spacing	32 mm
Lead Spacing	1.26 in
Lifetime @ Temp.	19000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Size / Dimension [diameter]	76.6 mm
Size / Dimension [diameter]	3.016 in
Tolerance	20 %
Voltage - Rated	450 V

Part	Voltage - Rated	Mounting Type	Ripple Current @ High Frequency	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Polarization	Tolerance	ESR (Equivalent Series Resistance)	Capacitance	Applications	Package / Case	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Impedance
KEMET PEH200YH3470MU2	450 V	Chassis Mount	17.5 A	12000 Hrs	0.866 in	22 mm	Polar	20 %	120 mOhm	470 µF	General Purpose	Radial Can - Screw Terminals	4.5 A	74.5 mm	2.933 in	85 °C	-40 °C	2.031 in	51.6 mm
KEMET PEH200YU433CMB2	450 V	Chassis Mount		19000 Hrs	1.26 in	32 mm	Polar	20 %	30 mOhm	3.3 mF	General Purpose	Radial Can - Screw Terminals				85 °C	-40 °C	3.016 in	76.6 mm	119 mm	4.685 in	17 mOhms
KEMET PEH200YY4470MB2	450 V	Chassis Mount		29000 Hrs	1.26 in	32 mm	Polar	20 %	16 mOhm	4700 µF	General Purpose	Radial Can - Screw Terminals	18.9 A	146.5 mm	5.768 "	85 °C	-40 °C	3.606 in	91.6 mm			9 mOhms
KEMET PEH200YK4100MU2	450 V	Chassis Mount	23.6 A	12000 Hrs	1.122 in	28.5 mm	Polar	20 %	60 mOhm	1000 µF	General Purpose	Radial Can - Screw Terminals	6.7 A	103.5 mm	4.075 in	85 °C	-40 °C	2.031 in	51.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3300 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 30mOhm @ 100Hz 19000 Hrs @ 85°C
