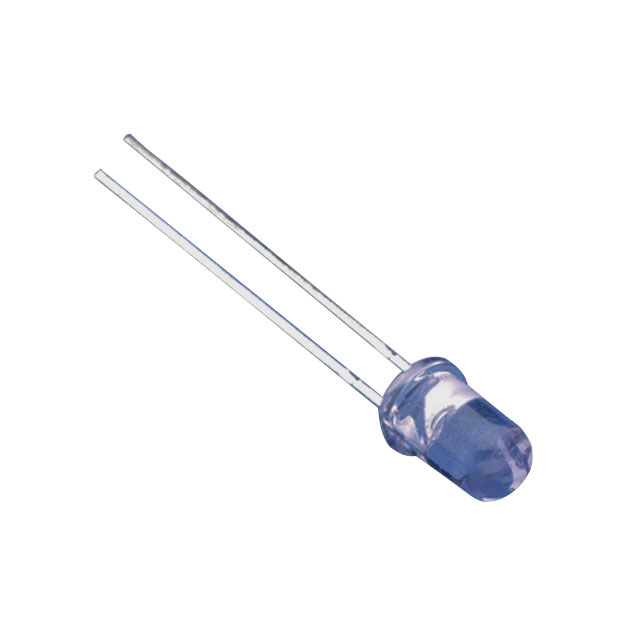

VTE1291-1H
ActiveExcelitas Technologies
IR LED DIODE CW-PULSD 3.3MW/CM2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VTE1291-1H
ActiveExcelitas Technologies
IR LED DIODE CW-PULSD 3.3MW/CM2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VTE1291-1H |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | Radial |
| Type | Infrared (IR) |
| Viewing Angle | 24 ° |
| Voltage - Forward (Vf) (Typ) | 1.5 V |
| Wavelength | 880 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.40 | |
| 100 | $ 0.38 | |||
Description
General part information
VTE1291 Series
Infrared (IR) Emitter 880nm 1.5V 100mA 32mW/sr @ 100mA 24° Radial
