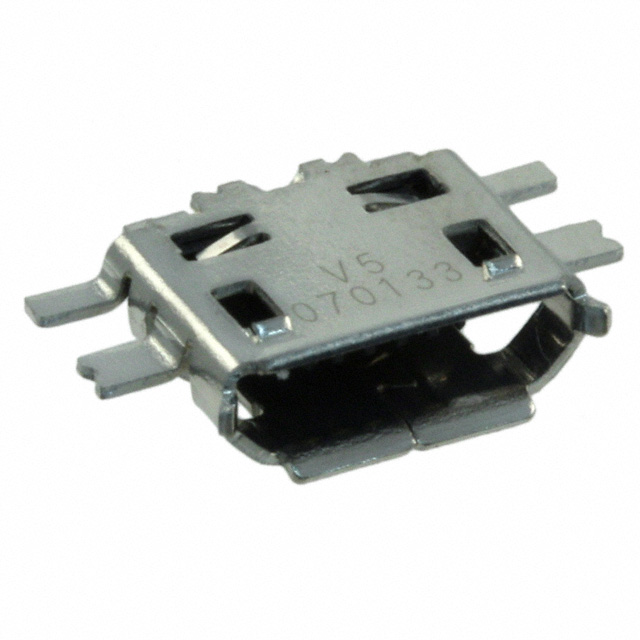

Specification	UB-MC5BR3-M404-4S-TB NMP

Connector Type	USB - micro B
Contact Finish	Gold
Current Rating Options	1.8A, 0.5A, 1A
Features	Solder Retention
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000 cycles
Mounting Feature	Horizontal, Mid Mount
Mounting Type	Surface Mount, Board Cutout
Number of Contacts	5
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Shell/Shielding Material	Steel, Stainless
Shielding	Unshielded
Termination	Solder
Voltage - Rated	30 VAC

UB-MC5BR Series

Part	Gender	Shielding	Features	Mating Cycles	Mounting Type	Number of Ports	Connector Type	Number of Contacts	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating Options	Termination	Mounting Feature	Voltage - Rated	Insulation Color	Material Flammability Rating	Contact Finish	Shell/Shielding Material	Ingress Protection
JST Sales America Inc. UB-MC5BR3-M404-4S-TB NMP	Receptacle	Unshielded	Solder Retention	10000 cycles	Board Cutout Surface Mount	1	USB - micro B	5	85 °C	-30 °C	0.5A 1.8A 1A	Solder	Horizontal Mid Mount	30 VAC	Black	UL94 V-0	Gold	Stainless Steel
JST Sales America Inc. UB-MC5BR3-SDWP604-4S-TF	Receptacle	Unshielded	Board Guide Solder Retention	10000 cycles	Right Angle Surface Mount	1	USB - micro B	5	85 °C	-30 °C	0.5A 1.8A 1A	Solder	Horizontal	30 VAC	Black	UL94 V-0	Gold	Stainless Steel	Waterproof
JST Sales America Inc. UB-MC5BR3-SD204-4S-1-TB NMP	Receptacle	Unshielded	Solder Retention	10000 cycles	Right Angle Surface Mount	1	USB - micro B	5	85 °C	-30 °C	0.5A 1.8A 1A	Solder	Horizontal	30 VAC	Black	UL94 V-0	Gold	Stainless Steel
