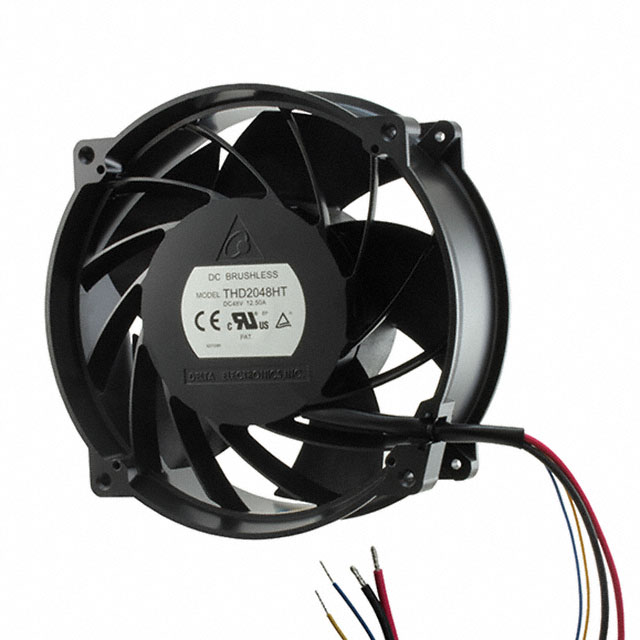

THD2048HT

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 48V 36V TO 75V 1026.8CFM 78DB 208 X 70MM

Search across all available documentation for this part.

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 48V 36V TO 75V 1026.8CFM 78DB 208 X 70MM

Technical Specifications

Parameters and characteristics for this part

Specification	THD2048HT

Air Flow	1026.8 CFM
Air Flow	28.75 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	8 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	78 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	384 W
RPM	7400 RPM
Size / Dimension	Round
Size / Dimension [diameter]	200 mm
Static Pressure	1232.2 Pa
Static Pressure	4.945 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	75 VDC
Voltage Range [Min]	36 VDC
Weight	1.6 kg
Weight	3.5 lbs
Width [y]	70 mm

DC FAN AXIAL BALL BEARING 48V 36V TO 75V 1026.8CFM 78DB 208 X 70MM

Part	Termination	Fan Type	Lifetime @ Temp.	Bearing Type	RPM	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Frame	Air Flow	Air Flow	Approval Agency	Width [y]	Features	Power (Watts)	Size / Dimension [diameter]	Size / Dimension	Current Rating (Amps)	Weight	Weight	Voltage - Rated [custom]	Noise	Static Pressure	Static Pressure
Delta Electronics THD2048HT	4 Wire Leads	Tubeaxial	70000 Hrs	Ball	7400 RPM	Plastic	75 VDC	36 VDC	70 °C	70 °C	-10 °C	-10 °C	Aluminum	1026.8 CFM	28.75 m³/min	CE, cURus, TUV	70 mm	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	384 W	200 mm	Round	8 A	1.6 kg	3.5 lbs	48 VDC	78 dB(A)	1232.2 Pa	4.945 in H2O

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Round - 200mm Dia Ball 1026.8 CFM (28.75m³/min) 4 Wire Leads
