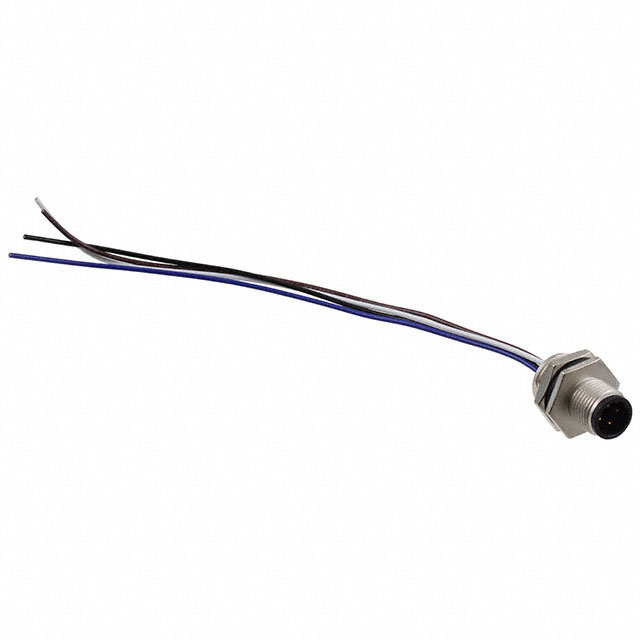

M12D-04PMMC-SH8B15

Active

Amphenol LTW

CONN PLUG MALE 4P WIR LEAD 0.49'

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG MALE 4P WIR LEAD 0.49'

Technical Specifications

Parameters and characteristics for this part

Specification	M12D-04PMMC-SH8B15

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	D
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-4
Shielding	Shielded
Termination	Wire Leads
Voltage Rating	250 VAC

Part	Color	Shielding	Shell Material	Number of Positions	Contact Finish - Mating	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Connector Type	Current Rating (Amps)	Insert Material	Termination	Mounting Feature	Voltage Rating	Shell Finish	Orientation	Primary Material	Contact Material
Amphenol LTW M12D-04PMMC-SH8B15	Silver	Shielded	Zinc Alloy	4	Gold	M12-4	-25 °C	85 °C	IP68 - Dust Tight Waterproof	Male Pins Plug	4 A	Polyamide (PA) Nylon Glass Filled	Wire Leads	Bulkhead - Rear Side Nut	250 VAC	Nickel	D	Metal	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Wire Leads
