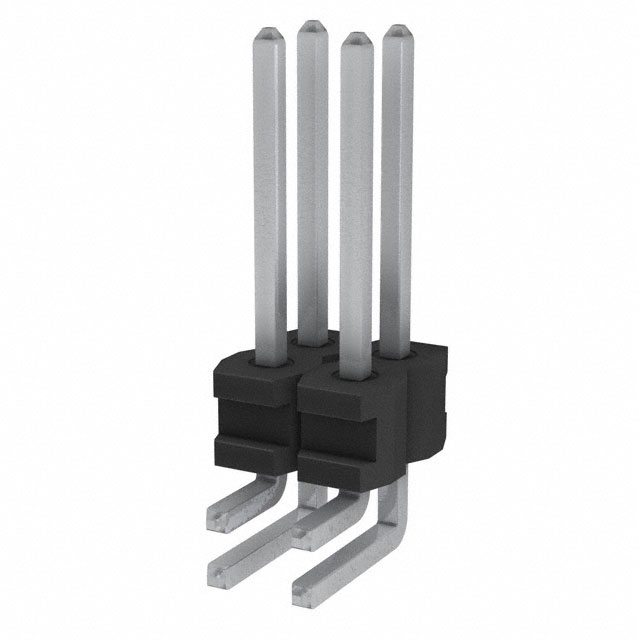

10007607-402-04LF
ActiveAmphenol ICC (FCI)
CONN HEADER R/A 4POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
10007607-402-04LF
ActiveAmphenol ICC (FCI)
CONN HEADER R/A 4POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10007607-402-04LF | 10007607 Series |
|---|---|---|
| Connector Type | Breakaway, Header | Breakaway, Header |
| Contact Finish - Mating | - | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 78.7 µin | 15 - 78.7 µin |
| Contact Finish Thickness - Mating | 2 µm | 0.38 - 2 µm |
| Contact Finish Thickness - Post | 2 çm | 2 çm |
| Contact Finish Thickness - Post | 78.7 çin | 78.7 çin |
| Contact Length - Mating | 0.335 in | 0.228 - 0.335 in |
| Contact Length - Mating | 8.51 mm | 5.8 - 8.51 mm |
| Contact Length - Post | 0.063 in | 0.063 - 0.098 in |
| Contact Length - Post | 1.6 mm | 1.6 - 2.5 mm |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 4 | 4 - 36 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 130 °C | 130 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Unshrouded | Unshrouded |
| Termination | Solder | Solder |
10007607 Series
CONN HEADER R/A 6POS 2.54MM
| Part | Connector Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Pitch - Mating | Pitch - Mating | Contact Type | Termination | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Mounting Type | Current Rating (Amps) | Contact Shape | Material Flammability Rating | Number of Rows | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Number of Positions Loaded | Contact Material | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) 10007607-801-06LF | Breakaway, Header | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Male Pin | Solder | Push-Pull | -65 ░C | 130 °C | 2.5 mm | 0.098 in | Gold | Through Hole, Right Angle | 3 A | Square | UL94 V-0 | 2 | Black | 15 µin | 0.38 µm | Unshrouded | 6 | 2 çm | 78.7 çin | Thermoplastic | All | Phosphor Bronze | 0.228 in | 5.8 mm | Tin |
Amphenol ICC (FCI) 10007607-801-36LF | Breakaway, Header | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Male Pin | Solder | Push-Pull | -65 ░C | 130 °C | 2.5 mm | 0.098 in | Gold | Through Hole, Right Angle | 3 A | Square | UL94 V-0 | 2 | Black | 15 µin | 0.38 µm | Unshrouded | 36 | 2 çm | 78.7 çin | Thermoplastic | All | Phosphor Bronze | 0.228 in | 5.8 mm | Tin |
Amphenol ICC (FCI) 10007607-802-06LF | Breakaway, Header | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Male Pin | Solder | Push-Pull | -65 ░C | 130 °C | 1.6 mm | 0.063 in | Gold | Through Hole, Right Angle | 3 A | Square | UL94 V-0 | 2 | Black | 15 µin | 0.38 µm | Unshrouded | 6 | 2 çm | 78.7 çin | Thermoplastic | All | Phosphor Bronze | 0.335 in | 8.51 mm | Tin |
Amphenol ICC (FCI) 10007607-401-04LF | Breakaway, Header | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Male Pin | Solder | Push-Pull | -65 ░C | 130 °C | 2.5 mm | 0.098 in | Through Hole, Right Angle | 3 A | Square | UL94 V-0 | 2 | Black | 78.7 µin | 2 µm | Unshrouded | 4 | 2 çm | 78.7 çin | Thermoplastic | All | Phosphor Bronze | 0.228 in | 5.8 mm | Tin | |
Amphenol ICC (FCI) 10007607-402-04LF | Breakaway, Header | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Male Pin | Solder | Push-Pull | -65 ░C | 130 °C | 1.6 mm | 0.063 in | Through Hole, Right Angle | 3 A | Square | UL94 V-0 | 2 | Black | 78.7 µin | 2 µm | Unshrouded | 4 | 2 çm | 78.7 çin | Thermoplastic | All | Phosphor Bronze | 0.335 in | 8.51 mm | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10007607 Series
Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
