10007607-802-06LF

Active

Amphenol ICC (FCI)

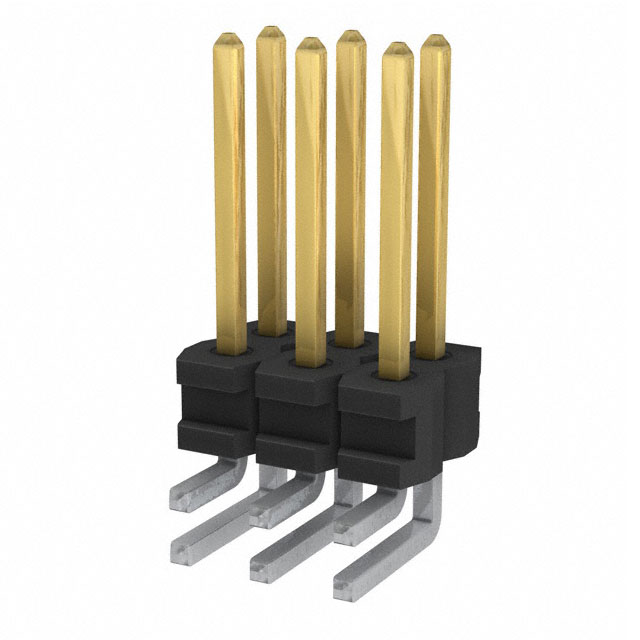

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet bus-12-114Other Related Documents +1

10007607-802-06LF

Active

Amphenol ICC (FCI)

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet bus-12-114Other Related Documents +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

10007607 Series

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

bus-12-114Other Related Documents

bergstik productpresentation Other Related Document

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10007607-802-06LF	10007607 Series

Connector Type	Breakaway, Header	Breakaway, Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	15 µin	15 - 78.7 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 - 2 µm
Contact Finish Thickness - Post	2 çm	2 çm
Contact Finish Thickness - Post	78.7 çin	78.7 çin
Contact Length - Mating	0.335 in	0.228 - 0.335 in
Contact Length - Mating	8.51 mm	5.8 - 8.51 mm
Contact Length - Post	0.063 in	0.063 - 0.098 in
Contact Length - Post	1.6 mm	1.6 - 2.5 mm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	6	4 - 36
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Termination	Solder	Solder

10007607 Series

CONN HEADER R/A 6POS 2.54MM

Part	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Type	Termination	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Mounting Type	Current Rating (Amps)	Contact Shape	Material Flammability Rating	Number of Rows	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Number of Positions Loaded	Contact Material	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post
Amphenol ICC (FCI) 10007607-801-06LF	Breakaway, Header	2.54 mm	0.1 in	0.1 in	2.54 mm	Male Pin	Solder	Push-Pull	-65 ░C	130 °C	2.5 mm	0.098 in	Gold	Through Hole, Right Angle	3 A	Square	UL94 V-0	2	Black	15 µin	0.38 µm	Unshrouded	6	2 çm	78.7 çin	Thermoplastic	All	Phosphor Bronze	0.228 in	5.8 mm	Tin
Amphenol ICC (FCI) 10007607-801-36LF	Breakaway, Header	2.54 mm	0.1 in	0.1 in	2.54 mm	Male Pin	Solder	Push-Pull	-65 ░C	130 °C	2.5 mm	0.098 in	Gold	Through Hole, Right Angle	3 A	Square	UL94 V-0	2	Black	15 µin	0.38 µm	Unshrouded	36	2 çm	78.7 çin	Thermoplastic	All	Phosphor Bronze	0.228 in	5.8 mm	Tin
Amphenol ICC (FCI) 10007607-802-06LF	Breakaway, Header	2.54 mm	0.1 in	0.1 in	2.54 mm	Male Pin	Solder	Push-Pull	-65 ░C	130 °C	1.6 mm	0.063 in	Gold	Through Hole, Right Angle	3 A	Square	UL94 V-0	2	Black	15 µin	0.38 µm	Unshrouded	6	2 çm	78.7 çin	Thermoplastic	All	Phosphor Bronze	0.335 in	8.51 mm	Tin
Amphenol ICC (FCI) 10007607-401-04LF	Breakaway, Header	2.54 mm	0.1 in	0.1 in	2.54 mm	Male Pin	Solder	Push-Pull	-65 ░C	130 °C	2.5 mm	0.098 in		Through Hole, Right Angle	3 A	Square	UL94 V-0	2	Black	78.7 µin	2 µm	Unshrouded	4	2 çm	78.7 çin	Thermoplastic	All	Phosphor Bronze	0.228 in	5.8 mm	Tin
Amphenol ICC (FCI) 10007607-402-04LF	Breakaway, Header	2.54 mm	0.1 in	0.1 in	2.54 mm	Male Pin	Solder	Push-Pull	-65 ░C	130 °C	1.6 mm	0.063 in		Through Hole, Right Angle	3 A	Square	UL94 V-0	2	Black	78.7 µin	2 µm	Unshrouded	4	2 çm	78.7 çin	Thermoplastic	All	Phosphor Bronze	0.335 in	8.51 mm	Tin
