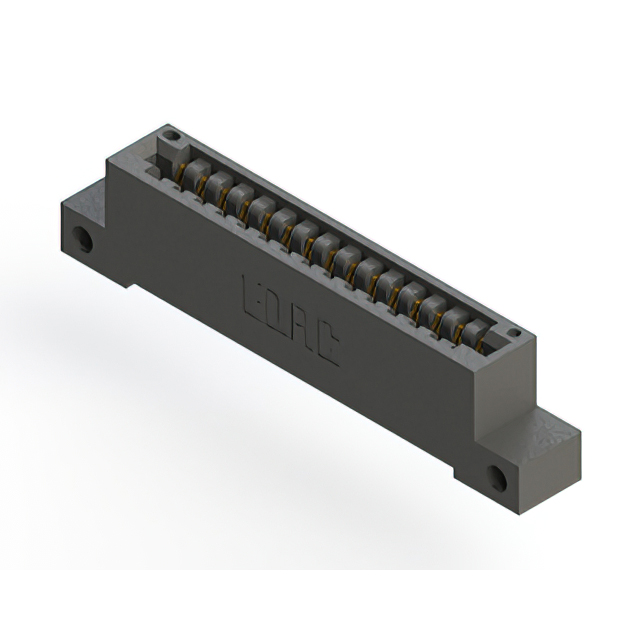

896-015-521-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 15POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-015-521-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 15POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-015-521-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 15 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
896-015 Series
...
| Part | Flange Feature | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Card Type | Contact Material | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Termination | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Contact Finish | Read Out | Gender | Material - Insulation | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Copper Alloy | 0.125 in | 3.18 mm | 15 | Solder | 15 | 125 °C | -40 °C | 1 | Gold | Single | Female | Polyphenylene Sulfide (PPS) | ||||
EDAC Inc. | Flush Mount Top Opening Unthreaded | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Copper Alloy | 0.125 in | 3.18 mm | 15 | Wire Wrap | 15 | 125 °C | -40 °C | 1 | Gold | Single | Female | Polyphenylene Sulfide (PPS) | 3.25 mm | 0.128 " | ||
EDAC Inc. | Flush Mount Side Opening Unthreaded | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Copper Alloy | 0.125 in | 3.18 mm | 15 | Solder | 15 | 125 °C | -40 °C | 1 | Gold | Single | Female | Polyphenylene Sulfide (PPS) | 3.25 mm | 0.128 " | ||
EDAC Inc. | Floating Bobbin Top Mount Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Copper Alloy | 0.125 in | 3.18 mm | 15 | Solder | 15 | 125 °C | -40 °C | 1 | Gold | Single | Female | Polyphenylene Sulfide (PPS) | 2.95 mm | 0.116 in | ||
EDAC Inc. | Flush Mount M3 Threaded Insert Top Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Copper Alloy | 0.125 in | 3.18 mm | 15 | Solder | 15 | 125 °C | -40 °C | 1 | Gold | Single | Female | Polyphenylene Sulfide (PPS) | ||||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Copper Alloy | 0.125 in | 3.18 mm | 15 | Solder | 15 | 125 °C | -40 °C | 1 | Gold | Single | Female | Polyphenylene Sulfide (PPS) | ||||
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Copper Alloy | 0.125 in | 3.18 mm | 15 | Solder | 15 | 125 °C | -40 °C | 1 | Gold | Single | Female | Polyphenylene Sulfide (PPS) | 3.25 mm | 0.128 in | |||
EDAC Inc. | Floating Bobbin Top Mount Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Copper Alloy | 0.125 in | 3.18 mm | 15 | Solder | 15 | 125 °C | -40 °C | 1 | Gold | Single | Female | Polyphenylene Sulfide (PPS) | 2.95 mm | 0.116 in | ||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Copper Alloy | 0.125 in | 3.18 mm | 15 | Solder | 15 | 125 °C | -40 °C | 1 | Gold | Single | Female | Polyphenylene Sulfide (PPS) | ||||
EDAC Inc. | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 1 | 10 Áin | 0.25 Ám | Cantilever | Non Specified - Single Edge | Copper Alloy | 0.125 in | 3.18 mm | 15 | Solder | 15 | 125 °C | -40 °C | 1 | Gold | Single | Female | Polyphenylene Sulfide (PPS) | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
896-015 Series
15 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
