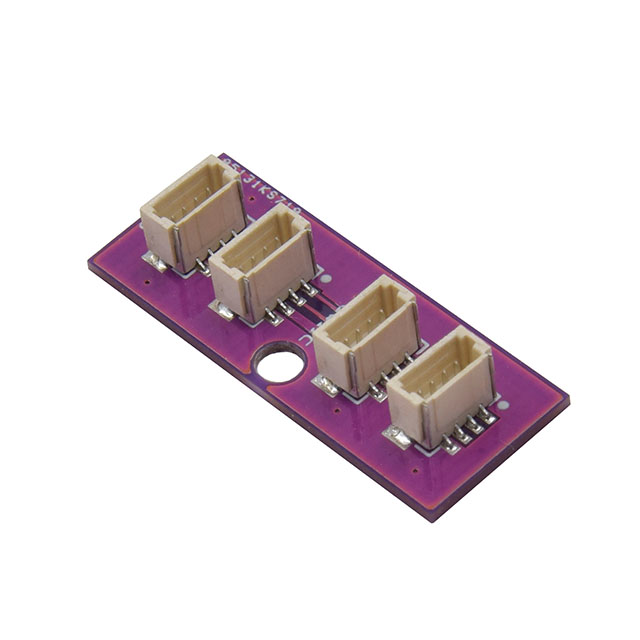

ZIO QWIIC HUB BOARD

Search across all available documentation for this part.

Active

Smart Prototyping

ZIO QWIIC HUB BOARD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ZIO-101898	ZIO-10 Series

Board Thickness	0.062 in	0.062 in
Board Thickness	0.0625 in	0.0625 in
Board Thickness	1.57 mm	1.57 mm
Material	FR4 Epoxy Glass	FR4 Epoxy Glass
Number of Positions	-	4
Package Accepted	-	2.54mm Header
Pitch	-	2.54 mm
Pitch	-	0.1 in
Proto Board Type	Qwiic Connectors	Qwiic Connectors, Connector to DIP
Size / Dimension [x]	30.1 mm	25.4 - 30.1 mm
Size / Dimension [x]	1.18 "	1 - 1.18 "
Size / Dimension [y]	0.47 "	0.34 - 0.47 "
Size / Dimension [y]	12 mm	8.6 - 12 mm

ZIO QWIIC HUB BOARD

Part	Board Thickness	Board Thickness	Board Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material	Proto Board Type	Package Accepted	Number of Positions	Pitch [x]	Pitch [x]
Smart Prototyping ZIO-101898	0.062 in	0.0625 in	1.57 mm	30.1 mm	0.47 "	1.18 "	12 mm	FR4 Epoxy Glass	Qwiic Connectors
Smart Prototyping ZIO-101899	0.062 in	0.0625 in	1.57 mm	25.4 mm	0.34 in	1 in	8.6 mm	FR4 Epoxy Glass	Connector to DIP	2.54mm Header	4	2.54 mm	0.1 in
