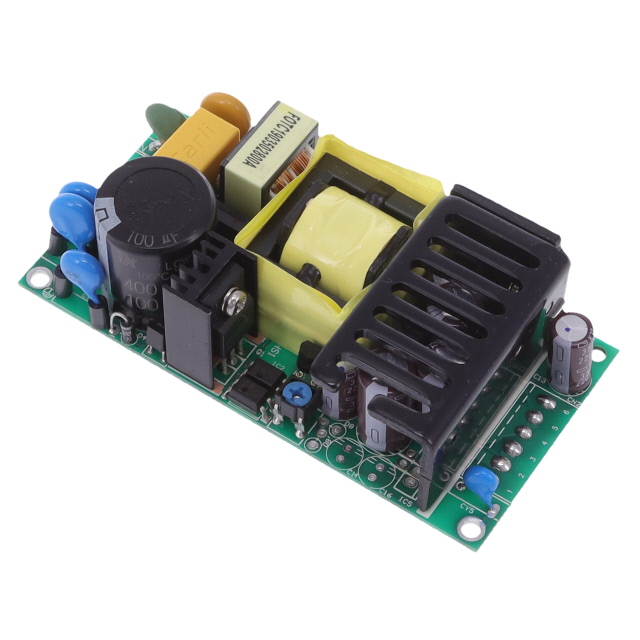

CFM40D-01-P
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 5V 12V 55W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CFM40D-01-P
ActiveCincon Electronics Co. LTD
AC/DC CONVERTER 5V 12V 55W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM40D-01-P |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus, FCC, TUV |
| Current - Output (Max) | 2.5 A, 5 A |
| Efficiency | 80 % |
| Features | Universal Input |
| Line Regulation | 2 % |
| Load Regulation | 5 % |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 55 W |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 34.79 | |
| 5 | $ 33.76 | |||
| 10 | $ 32.74 | |||
| 25 | $ 31.72 | |||
| 50 | $ 30.69 | |||
| 100 | $ 29.67 | |||
| 250 | $ 28.65 | |||
Description
General part information
CFM40D Series
Open Frame AC DC Converters 2 Output 5V 5A, 2.5A 90 ~ 264 VAC Input
