KAP1108E

Active

E-Switch

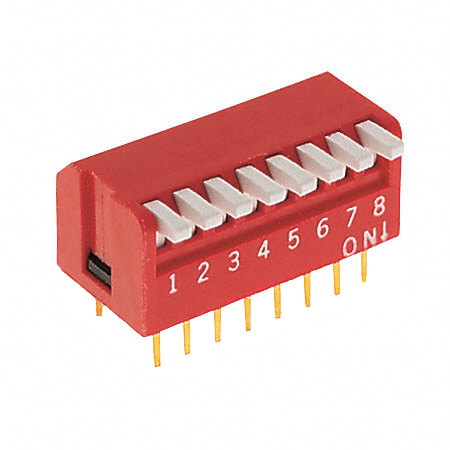

SWITCH PIANO DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PIANO DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	KAP1108E

Actuator Level	Raised
Actuator Type	Piano
Body Material	Polybutylene Terephthalate (PBT), Glass Filled
Circuit	SPST
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	10.2 mm
Height Above Board	0.402 in
Length	21.87 mm
Length	0.861 "
Mechanical Life	2000 Cycles
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

Part	Mechanical Life	Voltage Rating	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Termination Style	Height Above Board	Height Above Board	Current Rating (Amps)	Mounting Type	Actuator Type	Circuit	Contact Finish	Contact Material	Body Material	Electrical Life	Features
E-Switch KAP1108W	2000 Cycles	24 VDC	Raised	0.1 in	Full	2.54 mm	21.87 mm	0.861 "	85 °C	-40 °C	8	PC Pin	10.2 mm	0.402 in	25 mA	Through Hole Right Angle	Piano	SPST	Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	2000 Steps
E-Switch KAP1108E	2000 Cycles	24 VDC	Raised	0.1 in	Full	2.54 mm	21.87 mm	0.861 "	85 °C	-40 °C	8	PC Pin	10.2 mm	0.402 in	25 mA	Through Hole Right Angle	Piano	SPST	Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	2000 Steps
E-Switch KAP1108R	2000 Cycles	24 VDC	Flush Recessed	0.1 in	Full	2.54 mm	21.87 mm	0.861 "	85 °C	-40 °C	8	PC Pin	10.2 mm	0.402 in	25 mA	Through Hole Right Angle	Piano	SPST	Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	2000 Steps
E-Switch KAP1108ET	2000 Cycles	24 VDC	Raised	0.1 in	Full	2.54 mm	21.87 mm	0.861 "	85 °C	-40 °C	8	PC Pin	10.2 mm	0.402 in	25 mA	Through Hole Right Angle	Piano	SPST	Gold	Phosphor Bronze	Polybutylene Terephthalate (PBT) Glass Filled	2000 Steps	Tape Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 8 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
