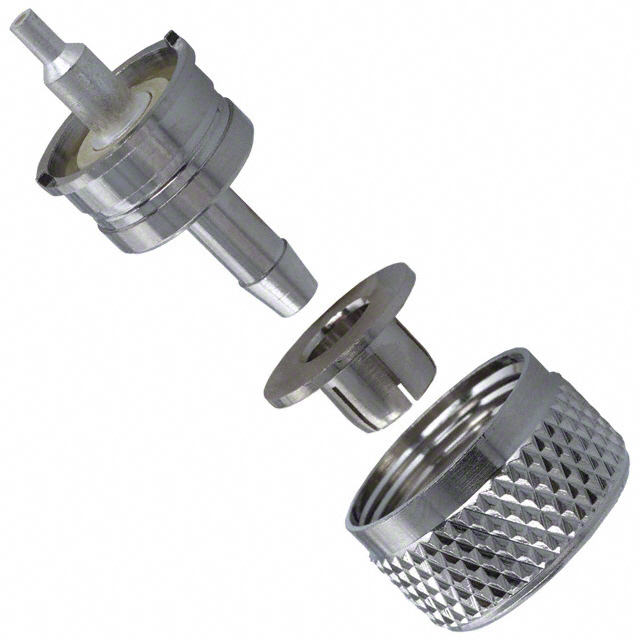

83-58FCP-RFX

Active

Amphenol RF

CONN UHF PLUG STR CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN UHF PLUG STR CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	83-58FCP-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	UHF
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Phenol Formaldehyde (Phenolic)
Frequency - Max [Max]	300 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	1 Connector, 1 Coupling Nut, 1 Ferrule
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Push On
Voltage Rating	500 V

Part	Connector Type	Body Material	Cable Group	Center Contact Material	Contact Termination	Dielectric Material	Frequency - Max [Max]	Voltage Rating	Mounting Type	Center Contact Plating	Connector Style	Body Finish	Impedance	Housing Color	Includes	Number of Ports	Shield Termination
Amphenol RF 83-58FCP-RFX	Male Pin Plug	Brass	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Brass	Crimp Solder	Phenol Formaldehyde (Phenolic)	300 MHz	500 V	Free Hanging (In-Line)	Gold	UHF	Nickel	Non-Constant	Silver	1 Connector 1 Coupling Nut 1 Ferrule	1	Push On
Amphenol RF 83-58FCP	Male Pin Plug	Brass	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Brass	Crimp Solder	Phenol Formaldehyde (Phenolic)	300 MHz	500 V	Free Hanging (In-Line)	Silver	UHF	Nickel	Non-Constant	Silver	1 Connector 1 Coupling Nut 1 Ferrule	1	Push On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

UHF Connector Plug, Male Pin Non-Constant Free Hanging (In-Line) Crimp or Solder
