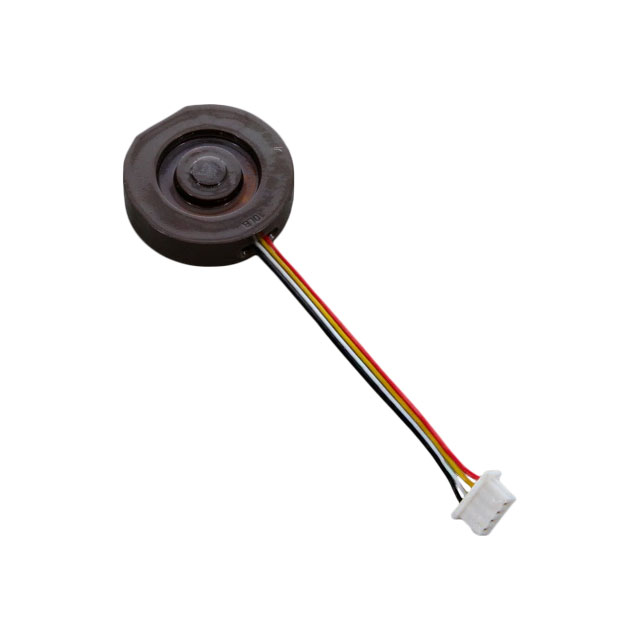

FX293X-040B-0010-L

Active

TE Connectivity Measurement Specialties

FORCE SENSOR

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

FORCE SENSOR

Technical Specifications

Parameters and characteristics for this part

Specification	FX293X-040B-0010-L

Accuracy	1 %
Actuator Type	Pushbutton
Compensated Temperature [Max]	50 °C
Compensated Temperature [Min]	0 °C
Includes	Sensor
Operating Force	5 kgf
Operating Force	11 lbs
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Sensor Type	Load Cell
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Includes	Sensor Type	Operating Temperature [Max]	Compensated Temperature [Max]	Accuracy	Actuator Type	Operating Force	Operating Force	Output [Min]	Output [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]
TE Connectivity Measurement Specialties FX293X-040B-0100-L	Sensor	Load Cell	85 °C	50 °C	1 %	Pushbutton	50 kgf	110 lbs	0.5 V	4.5 V	4.75 V	5.25 V
TE Connectivity Measurement Specialties FX293X-040B-0010-L	Sensor	Load Cell	85 °C	50 °C	1 %	Pushbutton	5 kgf	11 lbs	0.5 V	4.5 V	4.75 V	5.25 V
TE Connectivity Measurement Specialties FX293X-100A-0025-L	Sensor	Load Cell	85 °C	50 °C	1 %	Pushbutton			0.5 V	4.5 V	4.75 V	5.25 V
TE Connectivity Measurement Specialties FX293X-100A-0050-L	Sensor	Load Cell	85 °C	50 °C	1 %	Pushbutton	25 kgf	55 lbs	0.5 V	4.5 V	4.75 V	5.25 V
TE Connectivity Measurement Specialties FX293X-040B-0050-L	Sensor	Load Cell	85 °C	50 °C	1 %	Pushbutton	25 kgf	55 lbs	0.5 V	4.5 V	4.75 V	5.25 V
TE Connectivity Measurement Specialties FX293X-040B-0025-L	Sensor	Load Cell	85 °C	50 °C	1 %	Pushbutton			0.5 V	4.5 V	4.75 V	5.25 V
TE Connectivity Measurement Specialties FX293X-100A-0010-L	Sensor	Load Cell	85 °C	50 °C	1 %	Pushbutton	5 kgf	11 lbs	0.5 V	4.5 V	4.75 V	5.25 V
TE Connectivity Measurement Specialties FX293X-100A-0100-L	Sensor	Load Cell	85 °C	50 °C	1 %	Pushbutton	50 kgf	110 lbs	0.5 V	4.5 V	4.75 V	5.25 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

FORCE SENSOR
