854-10-129-10-001101

Active

PRECI-DIP SA

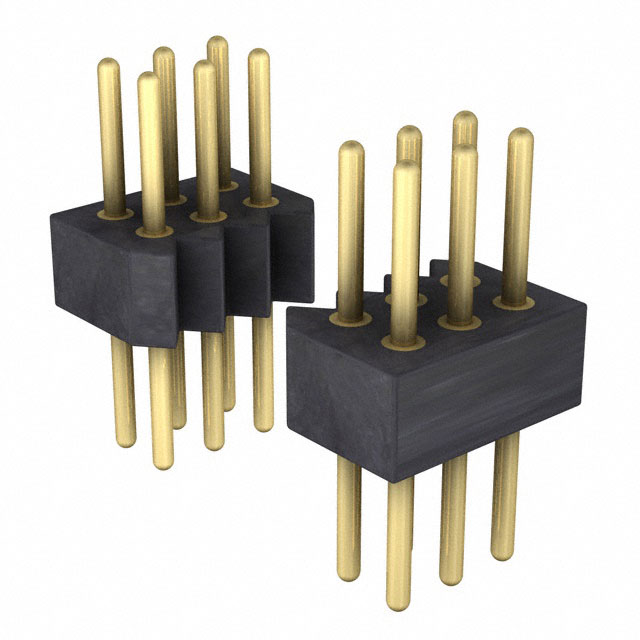

CONN HEADER VERT 129POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

854-10-129-10-001101

Active

PRECI-DIP SA

CONN HEADER VERT 129POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	854-10-129-10-001101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	129
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length [x]	8.1 mm
Overall Contact Length [x]	0.319 in
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

854-10 Series

Part	Contact Material	Number of Positions	Contact Type	Material Flammability Rating	Mounting Type	Contact Finish - Post	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post [x]	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Connector Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Insulation Color	Fastening Type	Shrouding	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish - Mating	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Post
PRECI-DIP SA 854-10-126-20-001101	Brass	126	Male Pin	UL94 V-0	Through Hole Right Angle	Gold	3	0.05 in	1.27 mm	3.2 mm	0.126 in	0.05 in	1.27 mm	Circular	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	150 VDC	Black	Push-Pull	Unshrouded	Solder	10 çin	0.25 çm	10 çin	0.25 çm	0.174 in	4.42 mm	Gold	All	3 mm	0.118 in
PRECI-DIP SA 854-10-084-20-001101	Brass	84	Male Pin	UL94 V-0	Through Hole Right Angle	Gold	3	0.05 in	1.27 mm	3.2 mm	0.126 in	0.05 in	1.27 mm	Circular	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	150 VDC	Black	Push-Pull	Unshrouded	Solder	10 çin	0.25 çm	10 çin	0.25 çm	0.174 in	4.42 mm	Gold	All	3 mm	0.118 in
PRECI-DIP SA 854-10-018-10-001101	Brass	18	Male Pin	UL94 V-0	Through Hole	Gold	3	0.05 in	1.27 mm	3 mm		0.05 in	1.27 mm	Circular	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	150 VDC	Black	Push-Pull	Unshrouded	Solder	10 çin	0.25 çm	10 çin	0.25 çm			Gold	All	3 mm	0.118 in	8.1 mm	0.319 in	0.118 in
PRECI-DIP SA 854-10-066-20-001101	Brass	66	Male Pin	UL94 V-0	Through Hole Right Angle	Gold	3	0.05 in	1.27 mm	3.2 mm	0.126 in	0.05 in	1.27 mm	Circular	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	150 VDC	Black	Push-Pull	Unshrouded	Solder	10 çin	0.25 çm	10 çin	0.25 çm	0.174 in	4.42 mm	Gold	All	3 mm	0.118 in
PRECI-DIP SA 854-10-072-20-001101	Brass	72	Male Pin	UL94 V-0	Through Hole Right Angle	Gold	3	0.05 in	1.27 mm	3.2 mm	0.126 in	0.05 in	1.27 mm	Circular	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	150 VDC	Black	Push-Pull	Unshrouded	Solder	10 çin	0.25 çm	10 çin	0.25 çm	0.174 in	4.42 mm	Gold	All	3 mm	0.118 in
PRECI-DIP SA 854-10-147-20-001101	Brass	147	Male Pin	UL94 V-0	Through Hole Right Angle	Gold	3	0.05 in	1.27 mm	3.2 mm	0.126 in	0.05 in	1.27 mm	Circular	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	150 VDC	Black	Push-Pull	Unshrouded	Solder	10 çin	0.25 çm	10 çin	0.25 çm	0.174 in	4.42 mm	Gold	All	3 mm	0.118 in
PRECI-DIP SA 854-10-057-20-001101	Brass	57	Male Pin	UL94 V-0	Through Hole Right Angle	Gold	3	0.05 in	1.27 mm	3.2 mm	0.126 in	0.05 in	1.27 mm	Circular	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	150 VDC	Black	Push-Pull	Unshrouded	Solder	10 çin	0.25 çm	10 çin	0.25 çm	0.174 in	4.42 mm	Gold	All	3 mm	0.118 in
PRECI-DIP SA 854-10-132-20-001101	Brass	132	Male Pin	UL94 V-0	Through Hole Right Angle	Gold	3	0.05 in	1.27 mm	3.2 mm	0.126 in	0.05 in	1.27 mm	Circular	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	150 VDC	Black	Push-Pull	Unshrouded	Solder	10 çin	0.25 çm	10 çin	0.25 çm	0.174 in	4.42 mm	Gold	All	3 mm	0.118 in
PRECI-DIP SA 854-10-129-10-001101	Brass	129	Male Pin	UL94 V-0	Through Hole	Gold	3	0.05 in	1.27 mm	3 mm		0.05 in	1.27 mm	Circular	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	150 VDC	Black	Push-Pull	Unshrouded	Solder	10 çin	0.25 çm	10 çin	0.25 çm			Gold	All	3 mm	0.118 in	8.1 mm	0.319 in	0.118 in
PRECI-DIP SA 854-10-024-20-001101	Brass	24	Male Pin	UL94 V-0	Through Hole Right Angle	Gold	3	0.05 in	1.27 mm	3.2 mm	0.126 in	0.05 in	1.27 mm	Circular	Header	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 °C	125 °C	150 VDC	Black	Push-Pull	Unshrouded	Solder	10 çin	0.25 çm	10 çin	0.25 çm	0.174 in	4.42 mm	Gold	All	3 mm	0.118 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 20.14

Description

General part information

854-10 Series

Connector Header Through Hole 129 position 0.050" (1.27mm)

Documents

Technical documentation and resources

No documents available
