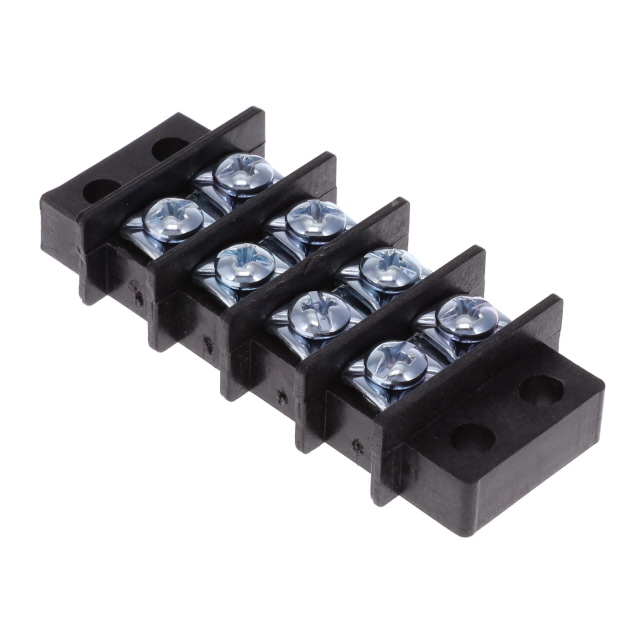

2004W

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.438"

Search across all available documentation for this part.

Active

Curtis Industries

CONN BARRIER STRIP 4CIRC 0.438"

Technical Specifications

Parameters and characteristics for this part

Specification	2004W

Barrier Type	2 Wall (Dual)
Bottom Termination	Closed
Current Rating (Amps)	30 A
Features	Flange
Material - Insulation	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	4
Number of Rows	2
Number of Wire Entries	8
Operating Temperature	110 °C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	10 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONN BARRIER STRIP 4CIRC 0.438"

Part	Material - Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Number of Circuits	Mounting Type	Current Rating (Amps)	Pitch [x]	Pitch [x]	Barrier Type	Terminal Block Type	Bottom Termination	Number of Wire Entries	Terminal Screw Material	Operating Temperature	Top Termination	Number of Rows	Features	Material Flammability Rating
Curtis Industries 2004W	Polyphenylene Oxide (PPO)	22 AWG	10 AWG	4	Chassis, Panel	30 A	11.12 mm	0.438 in	2 Wall (Dual)	Barrier Block	Closed	8	Steel	110 °C	Screws with Captive Plate	2	Flange	UL94 V-0

General part information

4 Circuit 0.438" (11.12mm) Barrier Block Connector Screws with Captive Plate
