SMM12-9-4W-I38

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 9V 12W

SMM12-9-4W-I38

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 9V 12W

Description Specifications Series Pricing CAD Documents

Description

General part information

SMM12 Series

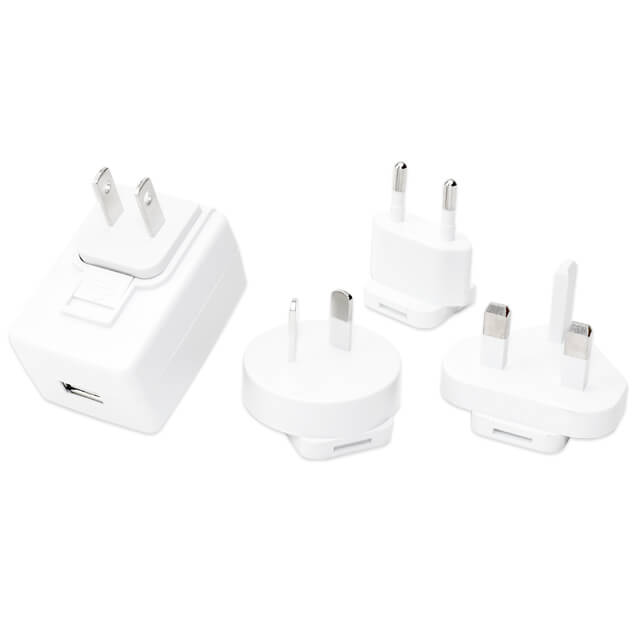

9V 12 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input

Technical Specifications

Parameters and characteristics for this part

Specification	SMM12-9-4W-I38

Applications	ITE (Commercial), Medical
Approval Agency	cULus, TUV, FCC, PSE, CE
Current - Output (Max)	1.33 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade (Included)
Input Type	Multi-Blade (Included)
No Load Power Consumption (Max)	100 mW
Operating Temperature (Max)	40 °C
Operating Temperature (Min)	0 °C
Output Connector	USB A Receptacle
Power (Watts)	12 W
Region Utilized	International
Size / Dimension Height	1.34 in
Size / Dimension Length	2.24 in
Size / Dimension Width	1.54 in
Standard Number	60601-1, 60950-1
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	9 V

SMM12 Series

Part	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Power (Watts)	Form	Current - Output (Max)	Standard Number	Voltage - Output	No Load Power Consumption (Max)	Output Connector	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Input Connector	Approval Agency	Operating Temperature (Max)	Operating Temperature (Min)	Region Utilized	Input Type	Efficiency	Applications	Polarization	Output Connector Length	Output Connector O.D.	Output Connector I.D.	Cord Length	No Load Power Consumption
CUI Inc. SMM12-6-KB-I38	2.24 in	1.34 in	1.54 in	12 W	Wall Mount (Class II)	2 A	60601-1 60950-1	6 V	100 mW	USB A Receptacle	90 V	264 V	Multi-Blade (Sold Separately)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Sold Separately)	Level VI	ITE (Commercial) Medical
CUI Inc. SMM12-5-4B-P6	2.24 in	1.34 in	1.54 in	12 W	Wall Mount (Class II)	2.4 A	60601-1 60950-1	5 VDC	100 mW	Barrel Plug	90 V	264 V	Multi-Blade (Included)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Included)	Level VI	ITE (Commercial) Medical	Positive Center	9.5 mm	5.5 mm	2.5 mm	59 in
CUI Inc. SMM12-5-KB-P6	2.24 in	1.34 in	1.54 in	12 W	Wall Mount (Class II)	2.4 A	60601-1 60950-1	5 VDC	100 mW	Barrel Plug	90 V	264 V	Multi-Blade (Sold Separately)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Sold Separately)	Level VI	ITE (Commercial) Medical	Positive Center	9.5 mm	5.5 mm	2.5 mm	59 in
CUI Inc. SMM12-15-4B-P6	2.24 in	1.34 in	1.54 in	12 W	Wall Mount (Class II)	800 mA	60601-1 60950-1	15 V	100 mW	Barrel Plug	90 V	264 V	Multi-Blade (Included)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Included)	Level VI	ITE (Commercial) Medical	Positive Center	9.5 mm	5.5 mm	2.5 mm	59 in
CUI Inc. SMM12-12-4W-P6	2.24 in	1.34 in	1.54 in	12 W	Wall Mount (Class II)	1 A	60601-1 60950-1	12 V	100 mW	Barrel Plug	90 V	264 V	Multi-Blade (Included)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Included)	Level VI	ITE (Commercial) Medical	Positive Center	9.5 mm	5.5 mm	2.5 mm	59 in
CUI Inc. SMM12-15-4W-P6R	2.24 in	1.34 in	1.54 in	12 W	Wall Mount	800 mA	60601-1 60950-1	15 V		Barrel Plug R/A	90 V	264 V	Multi-Blade (Included)	CE cURus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Included)	Level VI	ITE (Commercial) Medical	Positive Center	9.5 mm	5.5 mm	2.5 mm	59 in	100 mW
CUI Inc. SMM12-6-4B-P5R
CUI Inc. SMM12-12-4B-P5	2.24 in	1.34 in	1.54 in	12 W	Wall Mount (Class II)	1 A	60601-1 60950-1	12 V	100 mW	Barrel Plug	90 V	264 V	Multi-Blade (Included)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Included)	Level VI	ITE (Commercial) Medical	Positive Center	9.5 mm	5.5 mm	2.1 mm	59 in
CUI Inc. SMM12-18-KB-P5	2.24 in	1.34 in	1.54 in	12 W	Wall Mount (Class II)	660 mA	60601-1 60950-1	18 V	100 mW	Barrel Plug	90 V	264 V	Multi-Blade (Sold Separately)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Sold Separately)	Level VI	ITE (Commercial) Medical	Positive Center	9.5 mm	5.5 mm	2.1 mm	59 in
CUI Inc. SMM12-9-4W-I38	2.24 in	1.34 in	1.54 in	12 W	Wall Mount (Class II)	1.33 A	60601-1 60950-1	9 V	100 mW	USB A Receptacle	90 V	264 V	Multi-Blade (Included)	CE cULus FCC PSE TUV	40 °C	0 °C	International	Multi-Blade (Included)	Level VI	ITE (Commercial) Medical
