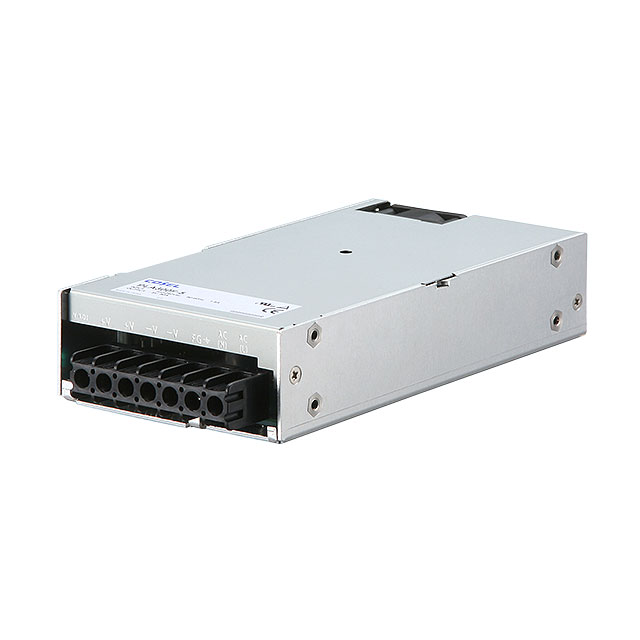

PLA300F-5-G

Active

Cosel USA, Inc.

AC/DC CONVERTER 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PLA300F-5-G

Active

Cosel USA, Inc.

AC/DC CONVERTER 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PLA300F-5-G

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	50 A
Efficiency	77 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Size / Dimension [x]	190 mm
Size / Dimension [x]	7.48 "
Size / Dimension [y]	4.02 in
Size / Dimension [y]	102.1 mm
Size / Dimension [z]	1.61 "
Size / Dimension [z]	40.9 mm
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

PLA300F Series

Part	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Number of Outputs	Approval Agency	Voltage - Output 1	Applications	Type	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Cosel USA, Inc. PLA300F-36-U	3000 V	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	87 %	1	CE cURus TUV	36 V	ITE (Commercial)	Enclosed	8.4 A	-20 C	70 °C	Chassis Mount
Cosel USA, Inc. PLA300F-48-G	3000 V	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	87 %	1	CE cURus TUV	48 V	ITE (Commercial)	Enclosed	6.3 A	-20 C	70 °C	Chassis Mount
Cosel USA, Inc. PLA300F-12-G	3000 V	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	81 %	1	CE cURus TUV	12 V	ITE (Commercial)	Enclosed	25 A	-20 C	70 °C	Chassis Mount
Cosel USA, Inc. PLA300F-36-G	3000 V	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	87 %	1	CE cURus TUV	36 V	ITE (Commercial)	Enclosed	8.4 A	-20 C	70 °C	Chassis Mount
Cosel USA, Inc. PLA300F-48-V	3000 V	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	87 %	1	CE cURus TUV	48 V	ITE (Commercial)	Enclosed	6.3 A	-20 C	70 °C	Chassis Mount
Cosel USA, Inc. PLA300F-48-C	3000 V	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	87 %	1	CE cURus TUV	48 V	ITE (Commercial)	Enclosed	6.3 A	-20 C	70 °C	Chassis Mount
Cosel USA, Inc. PLA300F-5-G	3000 V	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	77 %	1	CE cURus TUV	5 V	ITE (Commercial)	Enclosed	50 A	-20 C	70 °C	Chassis Mount
Cosel USA, Inc. PLA300F-15-U	3000 V	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	83 %	1	CE cURus TUV	15 V	ITE (Commercial)	Enclosed	20 A	-20 C	70 °C	Chassis Mount
Cosel USA, Inc. PLA300F-15-G	3000 V	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	83 %	1	CE cURus TUV	15 V	ITE (Commercial)	Enclosed	20 A	-20 C	70 °C	Chassis Mount
Cosel USA, Inc. PLA300F-36-C	3000 V	1.61 "	40.9 mm	4.02 in	190 mm	102.1 mm	7.48 "	87 %	1	CE cURus TUV	36 V	ITE (Commercial)	Enclosed	8.4 A	-20 C	70 °C	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 136.77

Description

General part information

PLA300F Series

Enclosed AC DC Converters 1 Output 5V 85 ~ 264 VAC Input

Documents

Technical documentation and resources
