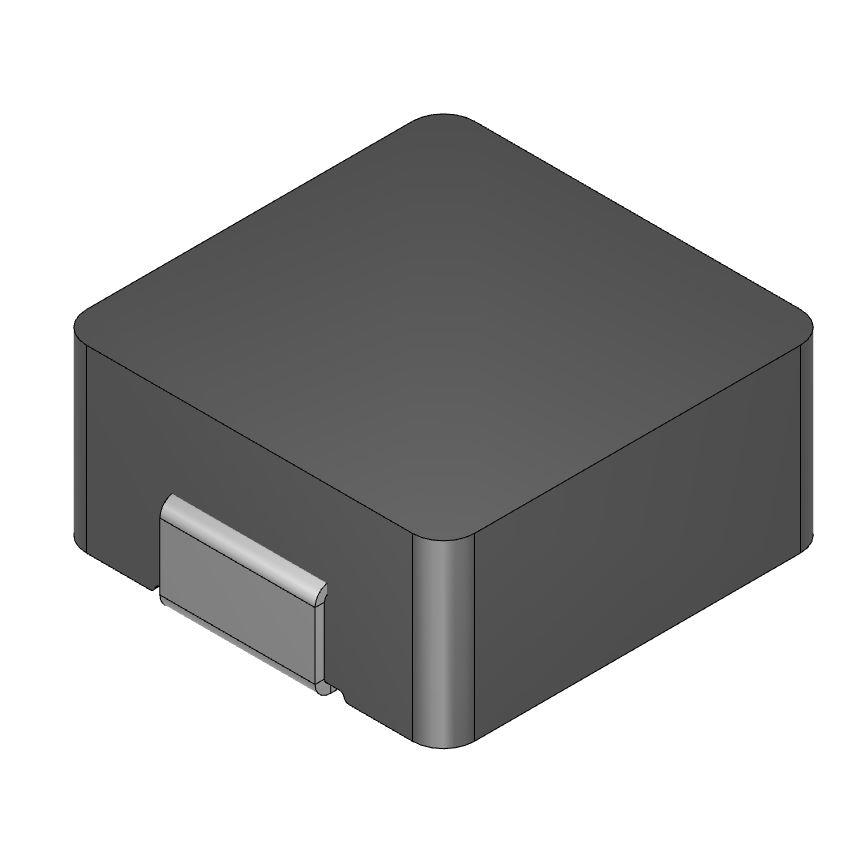

CMLS041B-R10MS

Active

Delta Electronics/Cyntec

FIXED IND 100NH 15A 6 MOHM SMD

Search across all available documentation for this part.

Active

Delta Electronics/Cyntec

FIXED IND 100NH 15A 6 MOHM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

FIXED IND 470NH 6.5A 22MOHM SMD

Part	Shielding	Inductance Frequency - Test	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material - Core	Inductance	Current - Saturation (Isat)	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]
Delta Electronics/Cyntec CMLS041B-R47MS	Shielded	100 kHz	6.5 A	-55 °C	125 °C	Surface Mount	Nonstandard	0.165 in	4.4 mm	4.2 mm	0.173 in	Metal	470 nH	11 A	3 %	1.2 mm	0.047 in
Delta Electronics/Cyntec CMLS041B-R10MS	Shielded	100 kHz	15 A	-55 °C	125 °C	Surface Mount	Nonstandard	0.165 in	4.4 mm	4.2 mm	0.173 in	Metal	100 nH	21 A	3 %	1.2 mm	0.047 in	6 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.64

General part information

100 nH Shielded Inductor 15 A 6mOhm Max Nonstandard
