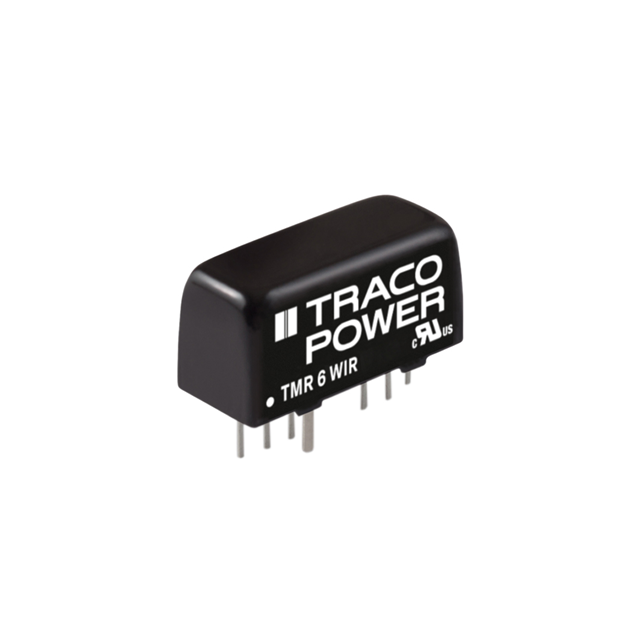

Specification	TMR 6-4812WIR

Applications	Railway, ITE (Commercial)
Current - Output (Max)	500 mA
Efficiency	87 %
Features	SCP, OCP, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Package / Case	8-SIP Module
Power (Watts)	6 W
Size / Dimension Height	0.44 in
Size / Dimension Length	0.86 in
Size / Dimension Width	0.38 in
Type	Isolated Module
Voltage - Input (Max)	75 V
Voltage - Input (Min)	18 V
Voltage - Isolation	3 kV
Voltage - Output 1	12 V

TMR 6 Series

Part	Voltage - Input (Min)	Efficiency	Voltage - Input (Max)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Outputs	Voltage - Output 1	Features	Current - Output (Max)	Voltage - Isolation	Power (Watts)	Type	Voltage - Output 2	Applications	Package Leads	Package Name	Package / Case
Traco Power TMR 6-1221	9 V	82 %	18 V	0.44 in	0.86 in	0.36 in	Through Hole	-40 °C	65 °C	2	5 V	Remote On/Off SCP	600 mA	1.6 kV	6 W	Isolated Module	-5 V	ITE (Commercial)	7 Leads	8-SIP Module
Traco Power TMR 6-1211	9 V	83 %	18 V	0.44 in	0.86 in	0.36 in	Through Hole	-40 °C	65 °C	1	5 V	Remote On/Off SCP	1.2 A	1.6 kV	6 W	Isolated Module		ITE (Commercial)	7 Leads	8-SIP Module
Traco Power TMR 6-2421WI	9 V	84 %	36 V	0.44 in	0.86 in	0.36 in	Through Hole	-40 °C	71 °C	2	5 V	Remote On/Off SCP	600 mA	1.6 kV	6 W	Isolated Module	-5 V	ITE (Commercial)	7 Leads	8-SIP Module
Traco Power TMR 6-4819WIR	18 V	85 %	75 V	0.44 in	0.86 in	0.38 in	Through Hole	-40 °C	80 °C	1	9 V	OCP Remote On/Off SCP	666 mA	3 kV	6 W	Isolated Module		ITE (Commercial) Railway			8-SIP Module
Traco Power TMR 6-4812WIR	18 V	87 %	75 V	0.44 in	0.86 in	0.38 in	Through Hole	-40 °C	80 °C	1	12 V	OCP Remote On/Off SCP	500 mA	3 kV	6 W	Isolated Module		ITE (Commercial) Railway			8-SIP Module
Traco Power TMR 6-2423WI	9 V	87 %	36 V	0.44 in	0.86 in	0.36 in	Through Hole	-40 °C	71 °C	2	15 V	Remote On/Off SCP	200 mA	1.6 kV	6 W	Isolated Module	-15 V	ITE (Commercial)	7 Leads	8-SIP Module
Traco Power TMR 6-7213WIR	43 V	86 %	160 VDC	0.44 in	0.86 in	0.38 in	Through Hole	-40 °C	80 °C	1	15 V	OCP Remote On/Off SCP	400 mA	3 kV	6 W	Isolated Module		ITE (Commercial) Railway			8-SIP Module
Traco Power TMR 6-0519	4.5 V	83 %	9 V	0.44 in	0.86 in	0.36 in	Through Hole	-40 °C	65 °C	1	9 V	Remote On/Off SCP	666 mA	1.6 kV	6 W	Isolated Module		ITE (Commercial)	7 Leads	8-SIP Module
Traco Power TMR 6-0510	4.5 V	77 %	9 V	0.44 in	0.86 in	0.36 in	Through Hole	-40 °C	65 °C	1	3.3 V	Remote On/Off SCP	1.3 A	1.6 kV	4.3 W	Isolated Module		ITE (Commercial)	7 Leads	8-SIP Module
Traco Power TMR 6-0521	4.5 V	81 %	9 V	0.44 in	0.86 in	0.36 in	Through Hole	-40 °C	65 °C	2	5 V	Remote On/Off SCP	600 mA	1.6 kV	6 W	Isolated Module	-5 V	ITE (Commercial)	7 Leads	8-SIP Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

TMR 6-4812WIR | Datasheet
