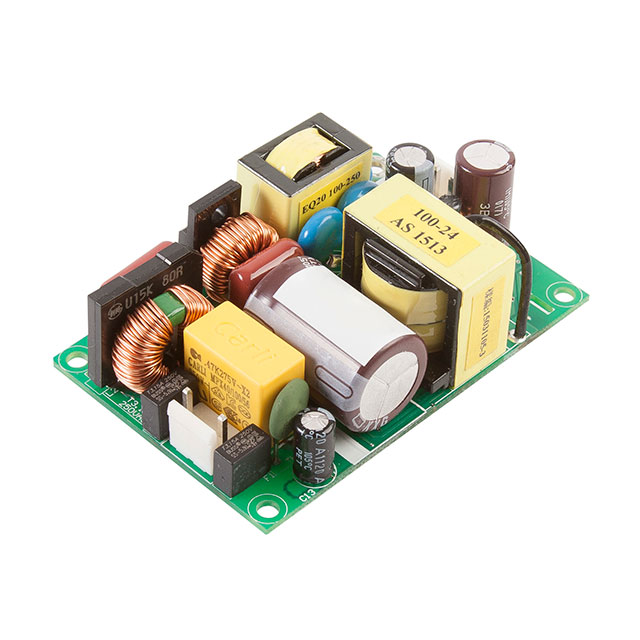

ECP130PS24

Active

XP POWER

AC/DC CONVERTER 24V 100W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 24V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	ECP130PS24

Applications	ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	4.16 A
Efficiency	93 %
Features	Standby Output, Universal Input, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	130 W
Power (Watts)	100 W
Size / Dimension [x]	76.2 mm
Size / Dimension [x]	3 "
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	1.1 in
Size / Dimension [z]	28 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Power (Watts)	Power (Watts)	Applications	Efficiency	Voltage - Output 1	Current - Output 1	Number of Outputs	Approval Agency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Voltage - Isolation	Minimum Load Required	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Type	Standard Number
XP POWER ECP130PS24	130 W	100 W	ITE (Commercial) Medical	93 %	24 V	4.16 A	1	CE	1.1 in	28 mm	76.2 mm	3 "	50.8 mm	2 in	PFC Standby Output Universal Input	4000 V		-20 °C	70 °C	Chassis Mount	Open Frame	62368-1
XP POWER ECP130PS36	130 W	100 W	ITE (Commercial) Medical	93 %	36 V	2.77 A	1	CE	1.1 in	28 mm	76.2 mm	3 "	50.8 mm	2 in	PFC Standby Output Universal Input	4000 V		-20 °C	70 °C	Chassis Mount	Open Frame	62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
