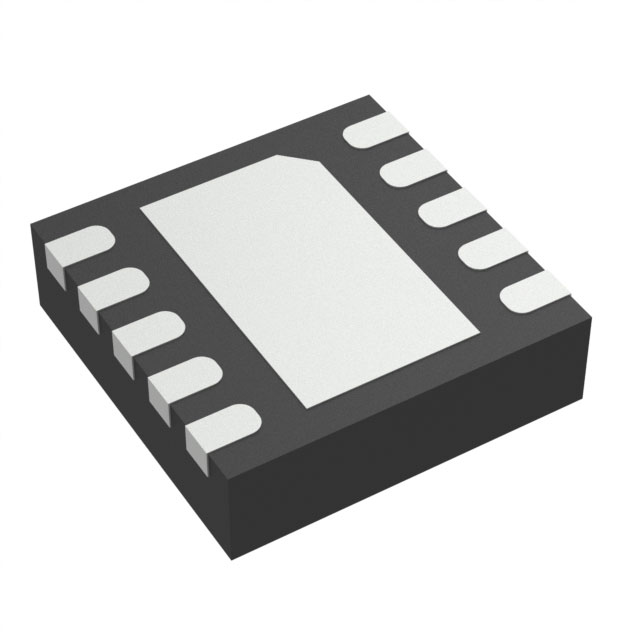

TPS54334DRCR - 10-VSON

TPS54334DRCR

Active
Texas Instruments

4.2V TO 28V INPUT VOLTAGE, 3A OUTPUT CURRENT SYNCHRONOUS BUCK CONVERTER WITH 570KHZ FIXED FREQUENCY

TPS54334DRCR - 10-VSON

TPS54334DRCR

Active
Texas Instruments

4.2V TO 28V INPUT VOLTAGE, 3A OUTPUT CURRENT SYNCHRONOUS BUCK CONVERTER WITH 570KHZ FIXED FREQUENCY

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationTPS54334DRCRTPS54334 Series
Board Type-Fully Populated
Current - Output3 A3 A
Frequency - Switching570 kHz570 kHz
FunctionStep-DownStep-Down
Main Purpose-DC/DC, Step Down
Mounting TypeSurface MountSurface Mount
Number of Outputs11
Operating Temperature [Max]85 °C85 - 150 C
Operating Temperature [Min]-40 °C-40 °C
Output ConfigurationPositivePositive
Output TypeAdjustableAdjustable
Outputs and Type-Non-Isolated
Outputs and Type-1
Package / Case10-VFDFN Exposed Pad8-PowerSOIC, 10-VFDFN Exposed Pad
Package / Case-3.9 mm
Package / Case-0.154 in
Supplied Contents-Board(s)
Supplier Device Package10-VSON (3x3)8-SO PowerPad, 10-VSON (3x3)
Synchronous RectifierTrueTrue
TopologyBuckBuck
Utilized IC / Part-TPS54334
Voltage - Input-28 V
Voltage - Input-4.2 V
Voltage - Input (Max) [Max]28 V28 V
Voltage - Input (Min) [Min]4.2 V4.2 V
Voltage - Output-3.3 V
Voltage - Output (Max) [Max]24 V24 V
Voltage - Output (Min/Fixed)0.8 V0.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

TPS54334 Series

4.2V TO 28V INPUT VOLTAGE, 3A OUTPUT CURRENT SYNCHRONOUS BUCK CONVERTER WITH 570KHZ FIXED FREQUENCY 8-SO POWERPAD -40 TO 150

PartTopologyVoltage - Input (Max) [Max]Voltage - Output (Min/Fixed)Frequency - SwitchingCurrent - OutputOutput TypeNumber of OutputsFunctionMounting TypePackage / Case [custom]Package / CasePackage / Case [custom]Output ConfigurationVoltage - Input (Min) [Min]Supplier Device PackageVoltage - Output (Max) [Max]Synchronous RectifierOperating Temperature [Max]Operating Temperature [Min]Voltage - OutputVoltage - Input [Max]Voltage - Input [Min]Supplied ContentsOutputs and TypeOutputs and TypeBoard TypeUtilized IC / PartMain Purpose
Texas Instruments
TPS54334DDA
The TPS54334 is a 28-V, 3-A, low quiescent supply current (IQ), synchronous monolithic buck converter with integrated MOSFETs. The TPS54334 enables small designs by integrating the MOSFETs and implementing current mode control to reduce external component count. Efficiency is maximized through the integrated 128mΩ/84mΩ MOSFETs, low quiescent supply current and pulse skipping at light loads. Using the enable pin, shutdown supply current is reduced to 2 µA by entering a shutdown mode. The TPS54334 provides accurate regulation for a variety of loads with an accurate 1.5% voltage reference over temperature. Cycle by cycle current limiting on the high-side fet protects the TPS54334 in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. There is also a low-side sinking current limit which turns off the low-side MOSFET to prevent excessive reverse current. Hiccup protection will be triggered if the overcurrent condition has persisted for longer than the preset time. Thermal hiccup protection disables the part when die temperature exceeds thermal shutdown temperature and enables the part again after the built-in thermal hiccup time. The TPS54334 is a 28-V, 3-A, low quiescent supply current (IQ), synchronous monolithic buck converter with integrated MOSFETs. The TPS54334 enables small designs by integrating the MOSFETs and implementing current mode control to reduce external component count. Efficiency is maximized through the integrated 128mΩ/84mΩ MOSFETs, low quiescent supply current and pulse skipping at light loads. Using the enable pin, shutdown supply current is reduced to 2 µA by entering a shutdown mode. The TPS54334 provides accurate regulation for a variety of loads with an accurate 1.5% voltage reference over temperature. Cycle by cycle current limiting on the high-side fet protects the TPS54334 in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. There is also a low-side sinking current limit which turns off the low-side MOSFET to prevent excessive reverse current. Hiccup protection will be triggered if the overcurrent condition has persisted for longer than the preset time. Thermal hiccup protection disables the part when die temperature exceeds thermal shutdown temperature and enables the part again after the built-in thermal hiccup time.
Buck
28 V
0.8 V
570 kHz
3 A
Adjustable
1
Step-Down
Surface Mount
3.9 mm
8-PowerSOIC
0.154 in
Positive
4.2 V
8-SO PowerPad
24 V
150 C
-40 °C
Texas Instruments
TPS54334DRCR
The TPS54334 is a 28-V, 3-A, low quiescent supply current (IQ), synchronous monolithic buck converter with integrated MOSFETs. The TPS54334 enables small designs by integrating the MOSFETs and implementing current mode control to reduce external component count. Efficiency is maximized through the integrated 128mΩ/84mΩ MOSFETs, low quiescent supply current and pulse skipping at light loads. Using the enable pin, shutdown supply current is reduced to 2 µA by entering a shutdown mode. The TPS54334 provides accurate regulation for a variety of loads with an accurate 1.5% voltage reference over temperature. Cycle by cycle current limiting on the high-side fet protects the TPS54334 in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. There is also a low-side sinking current limit which turns off the low-side MOSFET to prevent excessive reverse current. Hiccup protection will be triggered if the overcurrent condition has persisted for longer than the preset time. Thermal hiccup protection disables the part when die temperature exceeds thermal shutdown temperature and enables the part again after the built-in thermal hiccup time. The TPS54334 is a 28-V, 3-A, low quiescent supply current (IQ), synchronous monolithic buck converter with integrated MOSFETs. The TPS54334 enables small designs by integrating the MOSFETs and implementing current mode control to reduce external component count. Efficiency is maximized through the integrated 128mΩ/84mΩ MOSFETs, low quiescent supply current and pulse skipping at light loads. Using the enable pin, shutdown supply current is reduced to 2 µA by entering a shutdown mode. The TPS54334 provides accurate regulation for a variety of loads with an accurate 1.5% voltage reference over temperature. Cycle by cycle current limiting on the high-side fet protects the TPS54334 in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. There is also a low-side sinking current limit which turns off the low-side MOSFET to prevent excessive reverse current. Hiccup protection will be triggered if the overcurrent condition has persisted for longer than the preset time. Thermal hiccup protection disables the part when die temperature exceeds thermal shutdown temperature and enables the part again after the built-in thermal hiccup time.
Buck
28 V
0.8 V
570 kHz
3 A
Adjustable
1
Step-Down
Surface Mount
10-VFDFN Exposed Pad
Positive
4.2 V
10-VSON (3x3)
24 V
85 °C
-40 °C
Texas Instruments
TPS54334EVM-722
TPS54334 SWIFT™ DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
570 kHz
3 A
3.3 V
28 V
4.2 V
Board(s)
Non-Isolated
1
Fully Populated
TPS54334
DC/DC, Step Down
Texas Instruments
TPS54334DDAR
The TPS54334 is a 28-V, 3-A, low quiescent supply current (IQ), synchronous monolithic buck converter with integrated MOSFETs. The TPS54334 enables small designs by integrating the MOSFETs and implementing current mode control to reduce external component count. Efficiency is maximized through the integrated 128mΩ/84mΩ MOSFETs, low quiescent supply current and pulse skipping at light loads. Using the enable pin, shutdown supply current is reduced to 2 µA by entering a shutdown mode. The TPS54334 provides accurate regulation for a variety of loads with an accurate 1.5% voltage reference over temperature. Cycle by cycle current limiting on the high-side fet protects the TPS54334 in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. There is also a low-side sinking current limit which turns off the low-side MOSFET to prevent excessive reverse current. Hiccup protection will be triggered if the overcurrent condition has persisted for longer than the preset time. Thermal hiccup protection disables the part when die temperature exceeds thermal shutdown temperature and enables the part again after the built-in thermal hiccup time. The TPS54334 is a 28-V, 3-A, low quiescent supply current (IQ), synchronous monolithic buck converter with integrated MOSFETs. The TPS54334 enables small designs by integrating the MOSFETs and implementing current mode control to reduce external component count. Efficiency is maximized through the integrated 128mΩ/84mΩ MOSFETs, low quiescent supply current and pulse skipping at light loads. Using the enable pin, shutdown supply current is reduced to 2 µA by entering a shutdown mode. The TPS54334 provides accurate regulation for a variety of loads with an accurate 1.5% voltage reference over temperature. Cycle by cycle current limiting on the high-side fet protects the TPS54334 in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. There is also a low-side sinking current limit which turns off the low-side MOSFET to prevent excessive reverse current. Hiccup protection will be triggered if the overcurrent condition has persisted for longer than the preset time. Thermal hiccup protection disables the part when die temperature exceeds thermal shutdown temperature and enables the part again after the built-in thermal hiccup time.
Buck
28 V
0.8 V
570 kHz
3 A
Adjustable
1
Step-Down
Surface Mount
3.9 mm
8-PowerSOIC
0.154 in
Positive
4.2 V
8-SO PowerPad
24 V
85 °C
-40 °C
Texas Instruments
TPS54334DRCT
The TPS54334 is a 28-V, 3-A, low quiescent supply current (IQ), synchronous monolithic buck converter with integrated MOSFETs. The TPS54334 enables small designs by integrating the MOSFETs and implementing current mode control to reduce external component count. Efficiency is maximized through the integrated 128mΩ/84mΩ MOSFETs, low quiescent supply current and pulse skipping at light loads. Using the enable pin, shutdown supply current is reduced to 2 µA by entering a shutdown mode. The TPS54334 provides accurate regulation for a variety of loads with an accurate 1.5% voltage reference over temperature. Cycle by cycle current limiting on the high-side fet protects the TPS54334 in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. There is also a low-side sinking current limit which turns off the low-side MOSFET to prevent excessive reverse current. Hiccup protection will be triggered if the overcurrent condition has persisted for longer than the preset time. Thermal hiccup protection disables the part when die temperature exceeds thermal shutdown temperature and enables the part again after the built-in thermal hiccup time. The TPS54334 is a 28-V, 3-A, low quiescent supply current (IQ), synchronous monolithic buck converter with integrated MOSFETs. The TPS54334 enables small designs by integrating the MOSFETs and implementing current mode control to reduce external component count. Efficiency is maximized through the integrated 128mΩ/84mΩ MOSFETs, low quiescent supply current and pulse skipping at light loads. Using the enable pin, shutdown supply current is reduced to 2 µA by entering a shutdown mode. The TPS54334 provides accurate regulation for a variety of loads with an accurate 1.5% voltage reference over temperature. Cycle by cycle current limiting on the high-side fet protects the TPS54334 in overload situations and is enhanced by a low-side sourcing current limit which prevents current runaway. There is also a low-side sinking current limit which turns off the low-side MOSFET to prevent excessive reverse current. Hiccup protection will be triggered if the overcurrent condition has persisted for longer than the preset time. Thermal hiccup protection disables the part when die temperature exceeds thermal shutdown temperature and enables the part again after the built-in thermal hiccup time.
Buck
28 V
0.8 V
570 kHz
3 A
Adjustable
1
Step-Down
Surface Mount
10-VFDFN Exposed Pad
Positive
4.2 V
10-VSON (3x3)
24 V
85 °C
-40 °C

Description

General part information

TPS54334 Series

The TPS54334 is a 28-V, 3-A, low quiescent supply current (IQ), synchronous monolithic buck converter with integrated MOSFETs.

The TPS54334 enables small designs by integrating the MOSFETs and implementing current mode control to reduce external component count.

Efficiency is maximized through the integrated 128mΩ/84mΩ MOSFETs, low quiescent supply current and pulse skipping at light loads. Using the enable pin, shutdown supply current is reduced to 2 µA by entering a shutdown mode.
