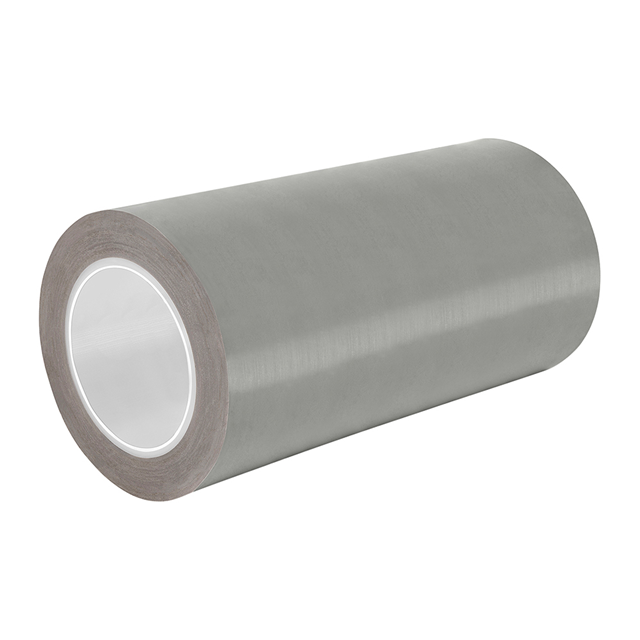

12-36-204-10

Active

TapeCase

TAPE ELECTRICAL GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

12-36-204-10

Active

TapeCase

TAPE ELECTRICAL GRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1	$ 2300.22

Description

General part information

204 Series

Electrical Tape Silicone Adhesive Gray X

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	12-36-204-10	204 Series

Adhesive	Silicone	Silicone
Backing, Carrier	PTFE Film	PTFE Film
Color	Gray	Gray
Tape Type	Electrical	Electrical
Temperature Range	260 °C	260 °C
Temperature Range	500 °F	500 °F
Thickness	0.254 mm	0.076 - 0.254 mm
Thickness	10 mils	3 - 10 mils
Thickness	0.01 "	0.003 - 0.01 "
Thickness - Adhesive	1.5 mils	1.5 - 3 mils
Thickness - Adhesive	0.0015 in	0.0015 - 0.003 in
Thickness - Adhesive	0.038 mm	0.038 - 0.076 mm
Thickness - Backing, Carrier	0.01 "	0.003 - 0.01 "
Thickness - Backing, Carrier	0.254 mm	0.076 - 0.254 mm
Thickness - Backing, Carrier	10 mils	3 - 10 mils
Thickness - Backing, Carrier	-	0.005 "
Thickness - Backing, Carrier	-	5 mils
Thickness - Backing, Carrier	-	0.127 mm
Usage	High Temperature, Electrically Insulating	High Temperature, Electrically Insulating

204 Series

TAPE ELECTRICAL GRAY

...

Part	Adhesive	Tape Type	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Backing, Carrier	Temperature Range	Temperature Range	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Color	Thickness	Thickness	Thickness	Usage	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]
TapeCase 10-36-204-10	Silicone	Electrical	1.5 mils	0.0015 in	0.038 mm	PTFE Film	260 °C	500 °F	0.01 "	0.254 mm	10 mils	Gray	0.254 mm	10 mils	0.01 "	Electrically Insulating, High Temperature
TapeCase 12-36-204-10	Silicone	Electrical	1.5 mils	0.0015 in	0.038 mm	PTFE Film	260 °C	500 °F	0.01 "	0.254 mm	10 mils	Gray	0.254 mm	10 mils	0.01 "	Electrically Insulating, High Temperature
TapeCase 1-5-204-5	Silicone	Electrical	1.5 mils	0.0015 in	0.038 mm	PTFE Film	260 °C	500 °F				Gray	0.127 mm	5 mils	0.005 in	Electrically Insulating, High Temperature	0.005 "	5 mils	0.127 mm
TapeCase 0.375-36-204-5	Silicone	Electrical	1.5 mils	0.0015 in	0.038 mm	PTFE Film	260 °C	500 °F				Gray	0.127 mm	5 mils	0.005 in	Electrically Insulating, High Temperature	0.005 "	5 mils	0.127 mm
TapeCase 1.625-36-204-5	Silicone	Electrical	1.5 mils	0.0015 in	0.038 mm	PTFE Film	260 °C	500 °F				Gray	0.127 mm	5 mils	0.005 in	Electrically Insulating, High Temperature	0.005 "	5 mils	0.127 mm
TapeCase 3-5-204-3	Silicone	Electrical	3 mils	0.003 "	0.076 mm	PTFE Film	260 °C	500 °F	0.003 in	0.076 mm	3 mils	Gray	0.076 mm	3 mils	0.003 in	Electrically Insulating, High Temperature
TapeCase 2-36-204-3	Silicone	Electrical	3 mils	0.003 "	0.076 mm	PTFE Film	260 °C	500 °F	0.003 in	0.076 mm	3 mils	Gray	0.076 mm	3 mils	0.003 in	Electrically Insulating, High Temperature
TapeCase 4-5-204-5	Silicone	Electrical	1.5 mils	0.0015 in	0.038 mm	PTFE Film	260 °C	500 °F				Gray	0.127 mm	5 mils	0.005 in	Electrically Insulating, High Temperature	0.005 "	5 mils	0.127 mm
TapeCase 0.375-5-204-10 (PK2)	Silicone	Electrical	1.5 mils	0.0015 in	0.038 mm	PTFE Film	260 °C	500 °F	0.01 "	0.254 mm	10 mils	Gray	0.254 mm	10 mils	0.01 "	Electrically Insulating, High Temperature
TapeCase 1/2-36-204-10	Silicone	Electrical	1.5 mils	0.0015 in	0.038 mm	PTFE Film	260 °C	500 °F	0.01 "	0.254 mm	10 mils	Gray	0.254 mm	10 mils	0.01 "	Electrically Insulating, High Temperature
