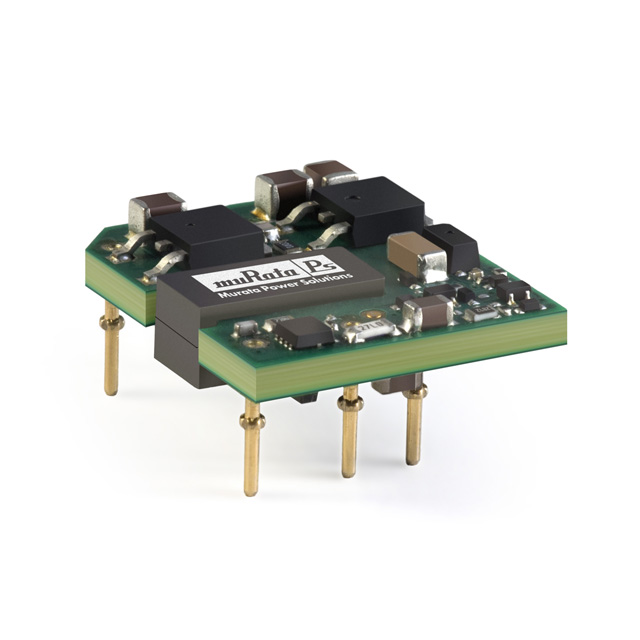

BEI15-050-Q12N-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BEI15-050-Q12N-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER +/-5V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BEI15-050-Q12N-C | BEI15-050 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) | 1.5 A | 1.5 A |
| Current - Output (Max) | 1.5 A | 1.5 A |
| Efficiency | 84 % | 83.5 - 84 % |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 6-DIP Module | 6-DIP Module |
| Power (Watts) | 15 W | 15 W |
| Size / Dimension [x] | 27.9 mm | 27.9 mm |
| Size / Dimension [x] | 1.1 " | 1.1 " |
| Size / Dimension [y] | 24.4 mm | 24.4 mm |
| Size / Dimension [y] | 0.96 in | 0.96 in |
| Size / Dimension [z] | 8.9 mm | 8.9 mm |
| Size / Dimension [z] | 0.35 " | 0.35 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 - 75 V |
| Voltage - Input (Min) [Min] | 9 V | 9 - 18 V |
| Voltage - Isolation | 2000 V | 2000 - 2250 V |
| Voltage - Output 1 | 5 V | 5 V |
| Voltage - Output 2 | -5 V | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
BEI15-050 Series
DC DC CONVERTER +/-5V 15W
| Part | Type | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Voltage - Input (Max) [Max] | Current - Output (Max) | Current - Output (Max) | Voltage - Output 1 | Package / Case | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Isolation | Mounting Type | Power (Watts) | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. BEI15-050-Q12N-C | Isolated Module | 2 | 24.4 mm | 8.9 mm | 0.35 " | 27.9 mm | 0.96 in | 1.1 " | 84 % | 36 V | 1.5 A | 1.5 A | 5 V | 6-DIP Module | 9 V | 85 °C | -40 °C | ITE (Commercial) | 2000 V | Through Hole | 15 W | -5 V |
Murata Power Solutions Inc. BEI15-050-Q12P-C | Isolated Module | 2 | 24.4 mm | 8.9 mm | 0.35 " | 27.9 mm | 0.96 in | 1.1 " | 84 % | 36 V | 1.5 A | 1.5 A | 5 V | 6-DIP Module | 9 V | 85 °C | -40 °C | ITE (Commercial) | 2000 V | Through Hole | 15 W | -5 V |
Murata Power Solutions Inc. BEI15-050-Q48N-C | Isolated Module | 2 | 24.4 mm | 8.9 mm | 0.35 " | 27.9 mm | 0.96 in | 1.1 " | 83.5 % | 75 V | 1.5 A | 1.5 A | 5 V | 6-DIP Module | 18 V | 85 °C | -40 °C | ITE (Commercial) | 2250 VDC | Through Hole | 15 W | -5 V |
Description
General part information
BEI15-050 Series
Isolated Module DC DC Converter 2 Output 5V -5V 1.5A, 1.5A 9V - 36V Input
