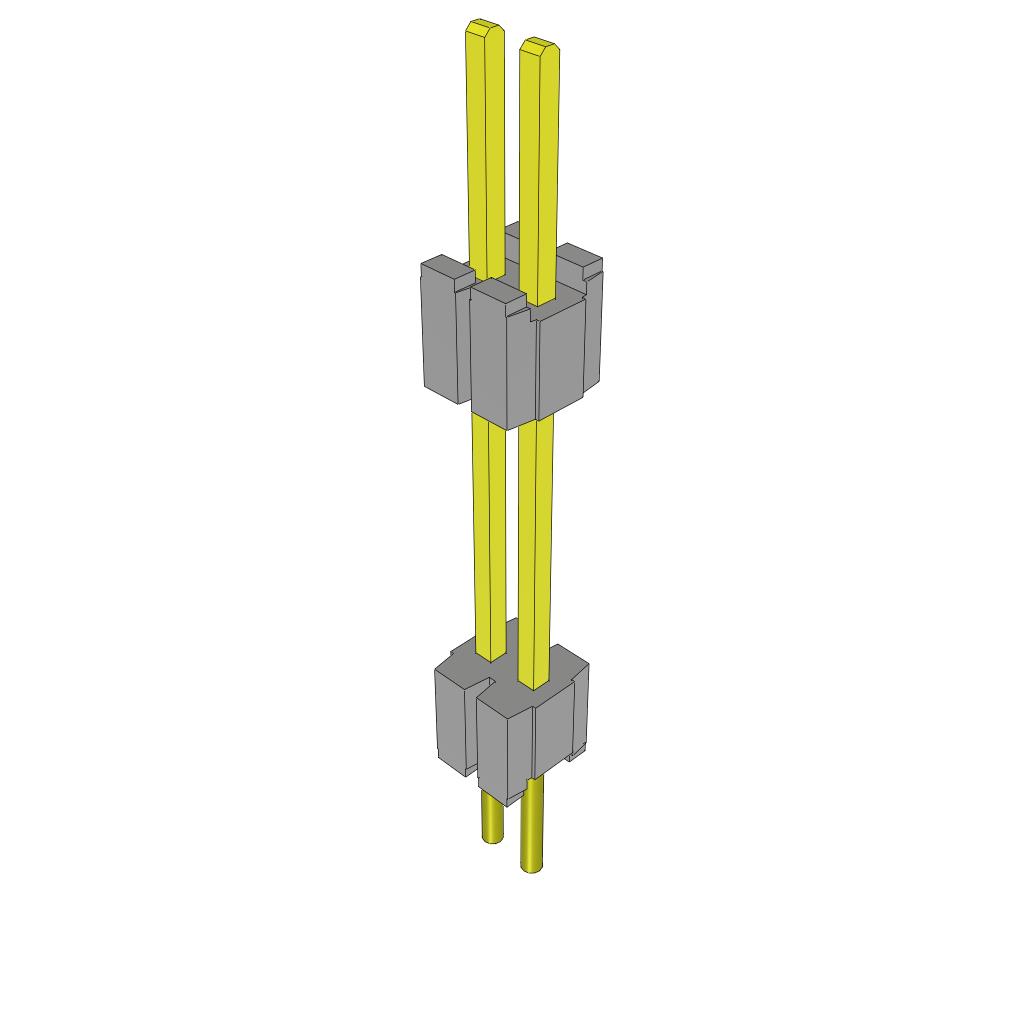

DWM-02-59-G-S-473

Active

Samtec Inc.

CONN HDR 2POS 0.05 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DWM Datasheet +1

DWM-02-59-G-S-473

Active

Samtec Inc.

CONN HDR 2POS 0.05 STACK T/H

Deep-Dive with AI

DocumentsDatasheet DWM Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DWM-02-59-G-S-473

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	0.755 in
Length - Overall Pin [x]	19.177 mm
Length - Post (Mating) [x]	0.162 in
Length - Post (Mating) [x]	4.115 mm
Length - Stack Height [custom]	0.473 in
Length - Stack Height [custom]	12.014 mm
Length - Tail [x]	0.12 in
Length - Tail [x]	3.048 mm
Mounting Type	Through Hole
Number of Positions	2
Number of Rows	1
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Termination	Solder

DWM-02 Series

Part	Color	Number of Positions	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Row Spacing [x]	Row Spacing	Length - Tail [x]	Length - Tail [x]	Contact Finish - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Pitch [x]	Pitch [x]	Mounting Type	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Termination	Number of Rows	Length - Stack Height [z]	Length - Stack Height [z]	Length - Stack Height [custom]	Length - Stack Height [custom]
Samtec Inc. DWM-02-61-G-D-644	Black	4	16.358 mm	0.644 in	1.05 in	26.67 mm	0.1 in	2.54 mm	0.12 in	3.048 mm	Gold	0.25 Ám	10 Áin	0.05 in	1.27 mm	Through Hole	0.286 in	7.264 mm	Solder	2
Samtec Inc. DWM-02-61-G-D-710	Black	4			1.05 in	26.67 mm	0.1 in	2.54 mm	0.12 in	3.048 mm	Gold	0.25 Ám	10 Áin	0.05 in	1.27 mm	Through Hole	0.22 in	5.588 mm	Solder	2	18.034 mm	0.71 in
Samtec Inc. DWM-02-61-S-S-752	Black	2			1.05 in	26.67 mm			0.12 in	3.048 mm	Gold	0.76 µm	30 µin	0.05 in	1.27 mm	Through Hole	0.178 in	4.521 mm	Solder	1	19.101 mm	0.752 in
Samtec Inc. DWM-02-53-S-D-280	Black	4	7.112 mm	0.28 in	0.505 in	12.827 mm	0.1 in	2.54 mm	0.12 in	3.048 mm	Gold	0.76 µm	30 µin	0.05 in	1.27 mm	Through Hole	0.105 in	2.667 mm	Solder	2
Samtec Inc. DWM-02-61-G-S-930	Black	2	23.622 mm	0.93 in	1.05 in	26.67 mm			0.12 in	3.048 mm	Gold	0.25 Ám	10 Áin	0.05 in	1.27 mm	Through Hole			Solder	1
Samtec Inc. DWM-02-59-G-S-473	Black	2			0.755 in	19.177 mm			0.12 in	3.048 mm	Gold	0.25 Ám	10 Áin	0.05 in	1.27 mm	Through Hole	0.162 in	4.115 mm	Solder	1			0.473 in	12.014 mm
Samtec Inc. DWM-02-53-G-D-370	Black	4			0.505 in	12.827 mm	0.1 in	2.54 mm	0.12 in	3.048 mm	Gold	0.25 Ám	10 Áin	0.05 in	1.27 mm	Through Hole	0.015 in	0.381 mm	Solder	2
Samtec Inc. DWM-02-59-G-S-505	Black	2	12.827 mm	0.505 in	0.755 in	19.177 mm			0.12 in	3.048 mm	Gold	0.25 Ám	10 Áin	0.05 in	1.27 mm	Through Hole	0.13 in	3.302 mm	Solder	1
Samtec Inc. DWM-02-51-L-S-200	Black	2			0.41 in	10.414 mm			0.12 in	3.048 mm	Gold	0.25 Ám	10 Áin	0.05 in	1.27 mm	Through Hole	0.09 in	2.286 mm	Solder	1
Samtec Inc. DWM-02-56-S-S-400	Black	2	10.16 mm	0.4 in	0.625 in	15.875 mm			0.12 in	3.048 mm	Gold	0.76 µm	30 µin	0.05 in	1.27 mm	Through Hole	0.105 in	2.667 mm	Solder	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.09

DWM-02-59-G-S-473

Deep-Dive with AI

DWM-02-59-G-S-473

Deep-Dive with AI

Technical Specifications

DWM-02 Series

Pricing

Description

DWM-02 Series

Documents

Datasheet

DWM Datasheet

.050" x .100" Flex Stack, Flexible Micro Board Stacker

DWM-02 Series
