T540B226K010AH85107610

Active

KEMET

CAP TANT POLY 22UF 10V 1411

T540B226K010AH85107610

Active

KEMET

CAP TANT POLY 22UF 10V 1411

Description Specifications Series Pricing CAD Documents

Description

General part information

T540B Series

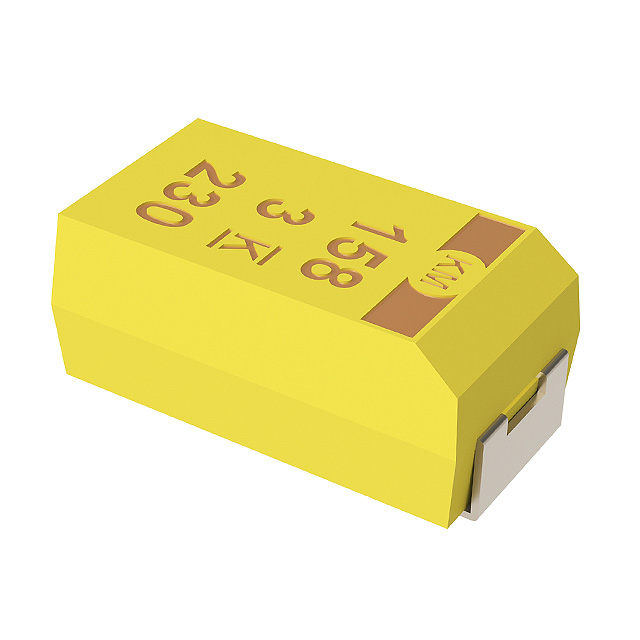

22 µF Molded Tantalum Polymer Capacitor 10 V 1411 (3528 Metric) 80mOhm @ 100kHz

Technical Specifications

Parameters and characteristics for this part

Specification	T540B226K010AH85107610

Capacitance	22 µF
ESR (Equivalent Series Resistance)	80 mOhm
Features	High Reliability
Height - Seated (Max)	0.083 in
Lifetime	2000 Hrs
Manufacturer Size Code	B
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	1411 (3528 Metric)
Package Diameter	3528 mm
Package Name	1411
Ratings	COTS
Size / Dimension Length	0.138 in
Size / Dimension Width	0.11 in
Tolerance	10 %
Type	Molded
Voltage - Rated	10 V

T540B Series

...

Part	Tolerance	Type	Features	Manufacturer Size Code	Lifetime	Package Diameter	Package / Case	Package Name	Ratings	Voltage - Rated	Capacitance	Size / Dimension Length	Size / Dimension Width	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	ESR (Equivalent Series Resistance)	Height - Seated (Max)
KEMET T540B226K010AH85107610	10 %	Molded	High Reliability	B	2000 Hrs	3528 mm	1411 (3528 Metric)	1411	COTS	10 V	22 µF	0.138 in	0.11 in	Surface Mount	125 °C	-55 °C	80 mOhm	0.083 in
KEMET T540B336M010BH8710	20 %	Molded	High Reliability	B	2000 Hrs	3528 mm	1411 (3528 Metric)	1411	COTS	10 V	33 µF	0.138 in	0.11 in	Surface Mount	125 °C	-55 °C	80 mOhm	0.083 in
KEMET T540B107M003AH85107610	20 %	Molded	High Reliability	B	2000 Hrs	3528 mm	1411 (3528 Metric)	1411	COTS	3 VDC	100 µF	0.138 in	0.11 in	Surface Mount	125 °C	-55 °C	80 mOhm	0.083 in
KEMET T540B157K003BH8710	10 %	Molded	High Reliability	B	2000 Hrs	3528 mm	1411 (3528 Metric)	1411	COTS	3 VDC	150 µF	0.138 in	0.11 in	Surface Mount	125 °C	-55 °C	80 mOhm	0.083 in
KEMET T540B157K003DH8510	10 %	Molded	High Reliability	B	2000 Hrs	3528 mm	1411 (3528 Metric)	1411	COTS	3 VDC	150 µF	0.138 in	0.11 in	Surface Mount	125 °C	-55 °C	80 mOhm	0.083 in
KEMET T540B107K003BH87107610	10 %	Molded	High Reliability	B	2000 Hrs	3528 mm	1411 (3528 Metric)	1411	COTS	3 VDC	100 µF	0.138 in	0.11 in	Surface Mount	125 °C	-55 °C	80 mOhm	0.083 in
KEMET T540B686M006BH8710	20 %	Molded	High Reliability	B	2000 Hrs	3528 mm	1411 (3528 Metric)	1411	COTS	6.3 V	68 µF	0.138 in	0.11 in	Surface Mount	125 °C	-55 °C	80 mOhm	0.083 in
KEMET T540B336M010AH86107280	20 %	Molded	High Reliability	B	2000 Hrs	3528 mm	1411 (3528 Metric)	1411	COTS	10 V	33 µF	0.138 in	0.11 in	Surface Mount	125 °C	-55 °C	80 mOhm	0.083 in
KEMET T540B157M003BH8610WAFL	20 %	Molded	High Reliability	B	2000 Hrs	3528 mm	1411 (3528 Metric)	1411	COTS	3 VDC	150 µF	0.138 in	0.11 in	Surface Mount	125 °C	-55 °C	80 mOhm	0.083 in
KEMET T540B686K006AH8510	10 %	Molded	High Reliability	B	2000 Hrs	3528 mm	1411 (3528 Metric)	1411	COTS	6.3 V	68 µF	0.138 in	0.11 in	Surface Mount	125 °C	-55 °C	80 mOhm	0.083 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

T540B226K010AH85107610 | Datasheet

Datasheet

T540B226K010AH85107610 | Datasheet
