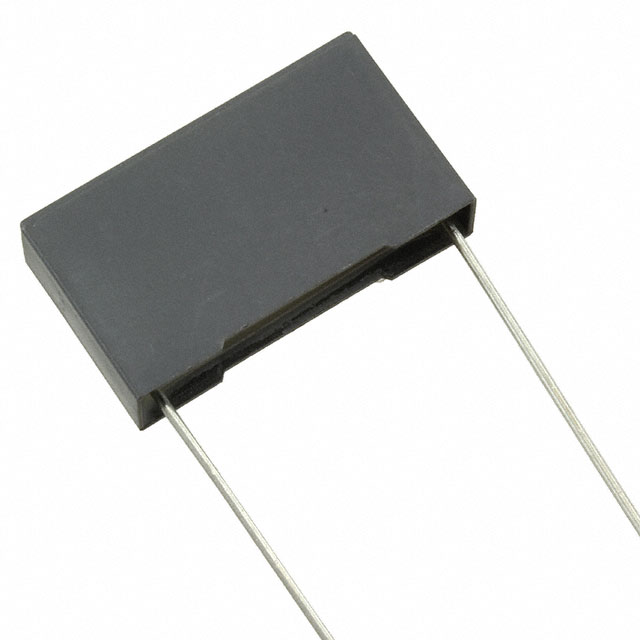

R75MF23304030J

Active

KEMET

CAP FILM 0.033UF 5% 400VDC RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.033UF 5% 400VDC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	R75MF23304030J

Applications	Automotive, High Frequency, Switching, High Pulse, DV/DT
Capacitance	0.033 çF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	0.437 in
Height - Seated (Max) [Max]	11.1 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	0.512 in
Size / Dimension [x]	13 mm
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	220 V
Voltage Rating - DC	400 V

Part	Ratings	Lead Spacing	Lead Spacing	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Termination	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Tolerance	Dielectric Material	Capacitance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	ESR (Equivalent Series Resistance)
KEMET R75MF22204030J	AEC-Q200	0.394 in	10 mm	4 mm	13 mm	0.157 in	0.512 in	Automotive High Frequency Switching High Pulse DV/DT	PC Pins	220 V	400 V	105 ░C	-55 °C	Radial	5 %	Metallized Polypropylene (PP)	0.022 µF	Through Hole
KEMET R75MF23304030J	AEC-Q200	0.394 in	10 mm	5 mm	13 mm	0.197 "	0.512 in	Automotive High Frequency Switching High Pulse DV/DT	PC Pins	220 V	400 V	105 ░C	-55 °C	Radial	5 %	Metallized Polypropylene (PP)	0.033 çF	Through Hole	0.437 in	11.1 mm
KEMET R75MF215050H0J	AEC-Q200	0.394 in	10 mm	4 mm	13 mm	0.157 in	0.512 in	Automotive High Frequency Switching High Pulse DV/DT	PC Pins	220 V	400 V	125 °C	-55 °C	Radial	5 %	Metallized Polypropylene (PP)	15000 pF	Through Hole			46.8 mOhms
