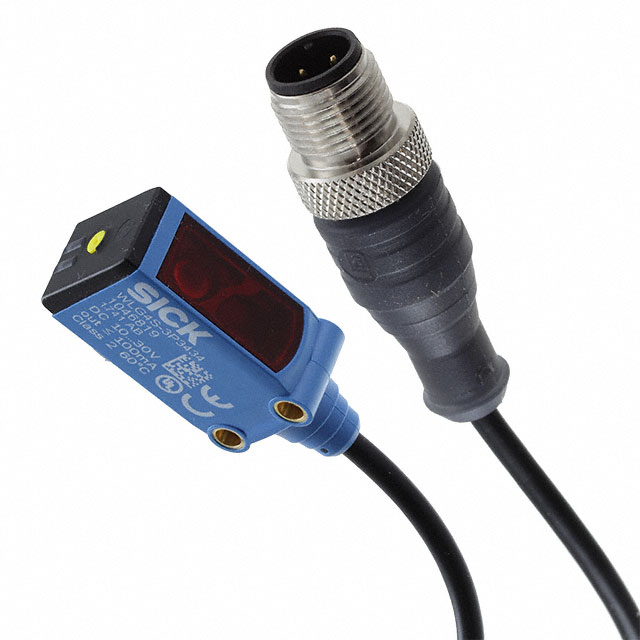

1046819

Obsolete

SICK, Inc.

SENSOR RETROREFLECTIVE 3M PNP

1046819

Obsolete

SICK, Inc.

SENSOR RETROREFLECTIVE 3M PNP

Description Specifications Series Pricing CAD Documents

Description

General part information

WLG4S Series

Retroreflective Optical Sensor 0" ~ 118.110" (0m ~ 3m) PNP - Dark-ON/Light-ON - Selectable

Technical Specifications

Parameters and characteristics for this part

Specification	1046819

Connection Method	Cable with Connector, M12, 4POS
Ingress Protection	IP67, IP66
Light Source	Red LED
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Light-ON - Selectable, Dark-ON, Selectable, Light-ON, PNP, PNP - Dark-ON
Response Time	500 µs
Sensing Distance Maximum	118.11 "
Sensing Distance Minimum	0 cm
Sensing Method	Retroreflective
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

WLG4S Series

Part	Response Time	Operating Temperature (Max)	Operating Temperature (Min)	Sensing Distance	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Sensing Method	Light Source Wavelength (Red)	Light Source	Adjustment Type	Connection Method	Output Configuration	Cable Length	Ingress Protection	Sensing Distance Maximum	Sensing Distance Minimum
SICK, Inc. WLG4S-3E1134H	500 µs	70 °C	-30 °C	196.85 "	10 VDC	30 VDC	Retroreflective	650 nm	Red	Adjustable	Cable	NPN	78.74 in	IP66
SICK, Inc. 1046111	500 µs	60 °C	-40 °C		10 VDC	30 VDC	Retroreflective	650 nm	Red	Adjustable	Cable	NPN	78.74 in	IP67	196.85 "	0.394 "
SICK, Inc. 1054098	500 µs	60 °C	-40 °C	118.11 "	10 VDC	30 VDC	Retroreflective	650 nm	Red	Adjustable	Cable with Connector	PNP	3.937 in	IP66 IP67 IP69K
SICK, Inc. 1043839	500 µs	60 °C	-40 °C		10 VDC	30 VDC	Retroreflective	650 nm	Red	Adjustable	Cable with Connector	PNP	3.937 in	IP67	196.85 "	0.394 "
SICK, Inc. WLG4S-3P2234VS05	200 µs	50 °C	-10 °C	0.394 "	10 VDC	30 VDC	Retroreflective	650 nm	Red	Adjustable Potentiometer	Connector M8	Light-ON NPN - Dark-ON		IP67 IP69K
SICK, Inc. 1046819	500 µs	60 °C	-40 °C		10 VDC	30 VDC	Retroreflective		Red LED		4POS Cable with Connector M12	Dark-ON Light-ON Light-ON - Selectable PNP PNP - Dark-ON Selectable		IP66 IP67	118.11 "	0 cm
SICK, Inc. WLG4S-3E1334S03	500 µs	60 °C	-40 °C		10 VDC	30 VDC	Retroreflective	650 nm	Red		Cable with Connector	NPN	11.81 in	IP67	196.85 "	0.394 "
SICK, Inc. WLG4S-3P2232V	500 µs	70 °C	-30 °C	196.85 "	10 VDC	30 VDC	Retroreflective	650 nm	Red	Adjustable	Connector M8	PNP		IP66 IP67 IP68 IP69K
SICK, Inc. 1058974	200 µs	50 °C	-10 °C	0.394 "	10 VDC	30 VDC	Retroreflective	650 nm	Red	Adjustable Potentiometer	Connector M8	Light-ON NPN - Dark-ON		IP67 IP69K
SICK, Inc. WLG4S-3F3234	500 µs	60 °C	-40 °C		10 VDC	30 VDC	Retroreflective	650 nm	Red	Adjustable	Cable with Connector	PNP	3.937 in	IP67	196.85 "	0.394 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1046819 | Datasheet
