L21D1S001-AZZ00-000

Active

Carling Technologies

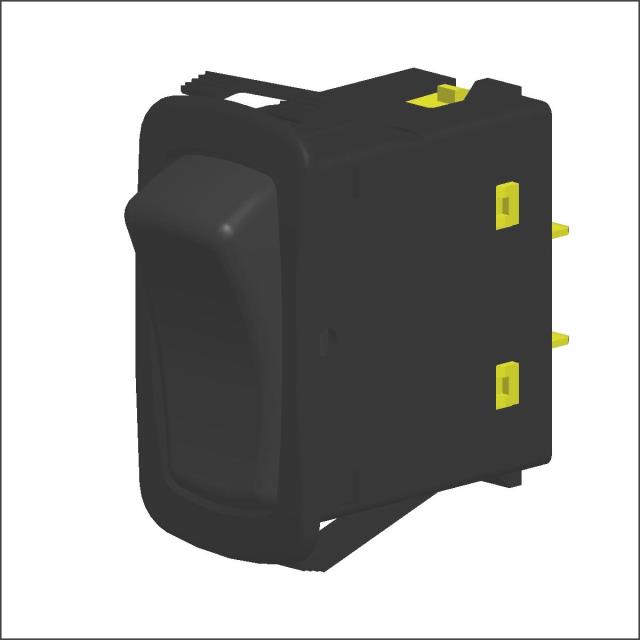

SWITCH ROCKER DPST 20A 12V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH ROCKER DPST 20A 12V

Technical Specifications

Parameters and characteristics for this part

SWITCH ROCKER DPST 20A 12V

Part	Termination Style	Actuator Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Actuator Marking	Current Rating (Amps)	Voltage Rating - DC	Ingress Protection	Switch Function	Electrical Life	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Color - Actuator/Cap	Circuit
Carling Technologies L21D1S001-AZZ00-000	Quick Connect - 0.250" (6.3mm)	Concave (Curved)	Panel Mount, Snap-In	85 °C	-40 °C	100000 Cycles	No Marking	20 A	12 V	IP67 - Dust Tight, Waterproof	On-Off	100000 Cycles	44.04 mm	22.02 mm	Black	DPST

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST 20A (DC) Panel Mount, Snap-In
