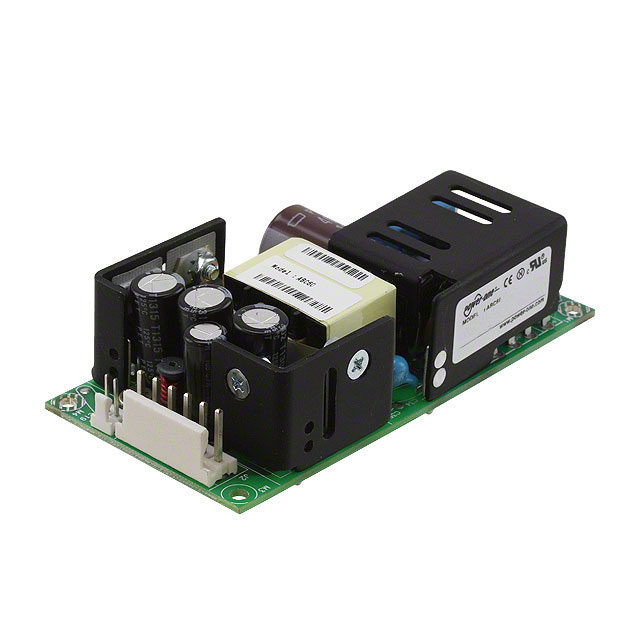

ABC60-1024G

Active

Bel Power Solutions

AC/DC POWER SUPPLY SINGLE-OUT 24V 2.71A 65W

Deep-Dive with AI

Search across all available documentation for this part.

ABC60-1024G

Active

Bel Power Solutions

AC/DC POWER SUPPLY SINGLE-OUT 24V 2.71A 65W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	2	$ 31.63
		5	$ 31.63
		11	$ 31.04
		22	$ 30.46
		43	$ 29.87
Digikey	Box	32	$ 33.15

Description

General part information

ABC60 Series

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABC60-1024G	ABC60 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	2.7 A	1.35 - 10 A
Current - Output 2	-	3 A
Current - Output 3	-	500 mA
Efficiency	85 %	85 %
Features	Remote Sense, Universal Input, Adjustable Output	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	False	True, False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1 - 3
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [x]	4 in	4 in
Size / Dimension [y]	2 in	2 in
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [z]	30.5 mm	30.5 mm
Size / Dimension [z]	1.2 "	1.2 "
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4.242 kV	4.242 kV
Voltage - Output 1	24 V	3.3 - 48 V
Voltage - Output 2	-	5.2 - 14.6 V
Voltage - Output 3	-	-16.2 - -12.8 V

ABC60 Series

AC/DC CNVRTR 5.2V 14.6V -14.8V

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Voltage - Output 1	Applications	Features	Voltage - Output 3	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Approval Agency	Current - Output 3	Voltage - Output 2	Type	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Current - Output 2
Bel Power Solutions ABC60-3002G	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	Chassis Mount	5.2 V	ITE (Commercial)	Adjustable Output, Remote Sense, Universal Input	-16.2 V	8 A	-20 °C	70 °C	4.242 kV	CE	500 mA	14.6 V	Open Frame	85 %	90 VAC	264 VAC	3
Bel Power Solutions ABC60-1005G	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	Chassis Mount	5.2 V	ITE (Commercial)	Adjustable Output, Remote Sense, Universal Input		10 A	-20 °C	70 °C	4.242 kV	CE			Open Frame	85 %	90 VAC	264 VAC	1
Bel Power Solutions ABC60-1024G	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	Chassis Mount	24 V	ITE (Commercial)	Adjustable Output, Remote Sense, Universal Input		2.7 A	-20 °C	70 °C	4.242 kV	CE			Open Frame	85 %	90 VAC	264 VAC	1
Bel Power Solutions ABC60-1048G	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	Chassis Mount	48 V	ITE (Commercial)	Adjustable Output, Remote Sense, Universal Input		1.35 A	-20 °C	70 °C	4.242 kV	CE			Open Frame	85 %	90 VAC	264 VAC	1
Bel Power Solutions ABC60-1012G	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	Chassis Mount	12 V	ITE (Commercial)	Adjustable Output, Remote Sense, Universal Input			-20 °C	70 °C	4.242 kV	CE			Open Frame	85 %	90 VAC	264 VAC	1
Bel Power Solutions ABC60-3003G	101.6 mm	2 in	30.5 mm	4 in	50.8 mm	1.2 "	Chassis Mount	3.3 V	ITE (Commercial)	Adjustable Output, Remote Sense, Universal Input	-12.8 V	8 A	-20 °C	70 °C	4.242 kV	CE	500 mA	5.2 V	Open Frame	85 %	90 VAC	264 VAC	3	3 A
