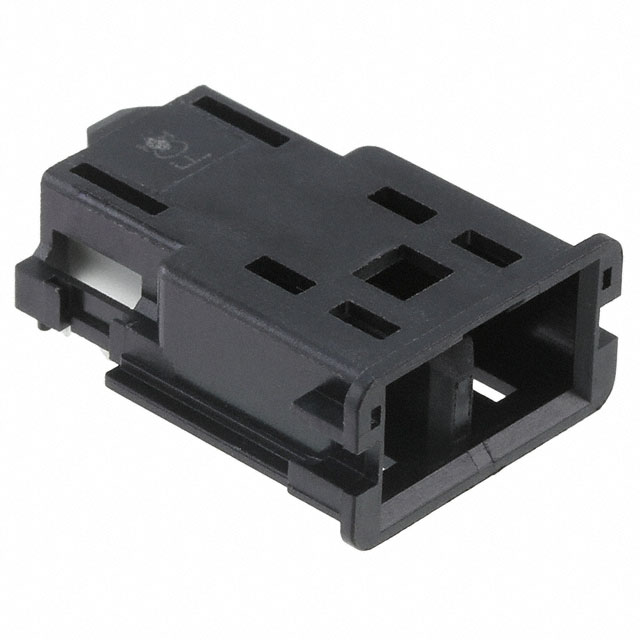

10101229-101LF

Active

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 2POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HEADER BLADE PWR 2POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10101229-101LF

Connector Style	Blade Power
Connector Type	Male Blades, Header
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical	2 Power
Current Rating (Amps)	20 A
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Termination	Solder

Part	Connector Style	Number of Positions	Mounting Type	Number of Positions Loaded	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Features	Material Flammability Rating	Termination	Current Rating (Amps)	Contact Layout, Typical	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol ICC (FCI) 10101229-101LF	Blade Power	2	Through Hole Right Angle	All	Header Male Blades	0.76 Ám	30 Áin	Board Guide	UL94 V-0	Solder	20 A	2 Power
Amphenol ICC (FCI) 10101229-202LF	Blade Power	4	Board Edge Right Angle Through Hole	All	Header Male Blades	0.76 Ám	30 Áin	Guide Pin	UL94 V-0	Press-Fit	20 A	4 Power	-65 ░C	105 ░C
Amphenol ICC (FCI) 10101229-201LF	Blade Power	4	Board Edge Right Angle Through Hole	All	Header Male Blades	0.76 Ám	30 Áin	Guide Pin	UL94 V-0	Press-Fit	20 A	4 Power	-65 ░C	105 ░C
Amphenol ICC (FCI) 10101229-102LF	Blade Power	4	Board Edge Right Angle Through Hole	All	Header Male Blades	0.76 Ám	30 Áin	Guide Pin	UL94 V-0	Press-Fit	20 A	4 Power	-65 ░C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	900	$ 5.29

General part information

2 Connector Header, Male Blades Through Hole, Right Angle Blade Power
