BPJR04AUX

Active

Switchcraft Inc.

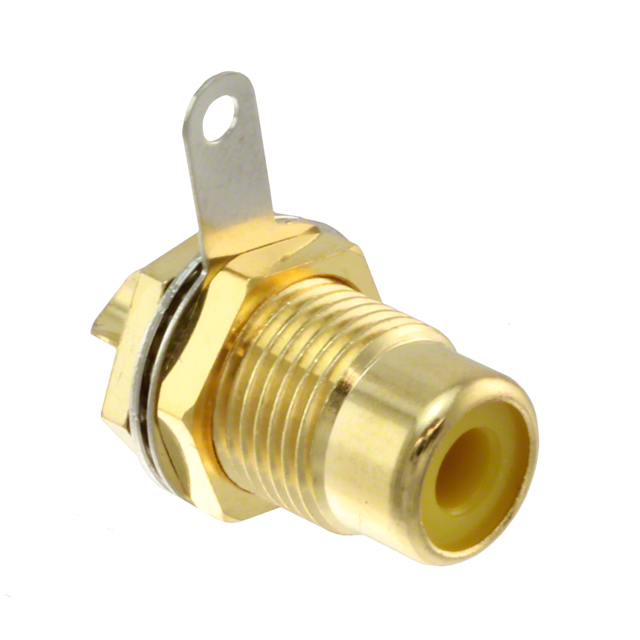

CONN RCA JACK MONO 3.2MM PNL MT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCA JACK MONO 3.2MM PNL MT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder Eyelet(s)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BPJR04AUX	BPJR04 Series

Actual Diameter [custom]	8.25 mm	8.25 mm
Actual Diameter [custom]	0.134 "	0.134 "
Actual Diameter [custom]	3.4 mm	3.4 mm
Actual Diameter [custom]	0.325 "	0.325 "
Body Color	Silver	Silver
Body Material	Brass	Brass
Connector Type	Phono (RCA) Jack	Phono (RCA) Jack
Contact Material	Brass	Brass
Contact Material - Plating	-	Nickel
Contact Material - Plating [custom]	Gold	Gold
Features	Mounting Hardware, Grounding Tab	Mounting Hardware, Grounding Tab
Gender	Female	Female
Includes	Connector, Washer, Nut	Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	9 mm, 3.2 mm	3.2 - 9 mm
Insulation Color	Yellow	Yellow
Internal Switch(s)	False	False
Number of Positions/Contacts [custom]	2	2
Number of Positions/Contacts [custom]	2	2
Panel Hole Size	0.375 in	0.375 in
Panel Hole Size	9.52 mm	9.52 mm
Shielding	Unshielded	Unshielded
Signal Lines	Mono	Mono
Termination	Solder Eyelet(s)	Solder Eyelet(s)
Thread Size	3/8"-32	3/8"-32

CONN RCA JACK MONO 3.2MM PNL MT

Part	Industry Recognized Mating Diameter [diameter]	Gender	Includes	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Shielding	Connector Type	Internal Switch(s)	Contact Material - Plating [custom]	Thread Size	Signal Lines	Contact Material	Features	Body Material	Panel Hole Size	Panel Hole Size	Body Color	Insulation Color	Termination	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Contact Material - Plating [custom]
Switchcraft Inc. BPJR04X	3.2 mm, 9 mm	Female	Connector, Nut, Washer	2	2	Unshielded	Phono (RCA) Jack		Nickel	3/8"-32	Mono	Brass	Grounding Tab, Mounting Hardware	Brass	0.375 in	9.52 mm	Silver	Yellow	Solder Eyelet(s)	8.25 mm	0.134 "	3.4 mm	0.325 "
Switchcraft Inc. BPJR04AUX	3.2 mm, 9 mm	Female	Connector, Nut, Washer	2	2	Unshielded	Phono (RCA) Jack			3/8"-32	Mono	Brass	Grounding Tab, Mounting Hardware	Brass	0.375 in	9.52 mm	Silver	Yellow	Solder Eyelet(s)	8.25 mm	0.134 "	3.4 mm	0.325 "	Gold
