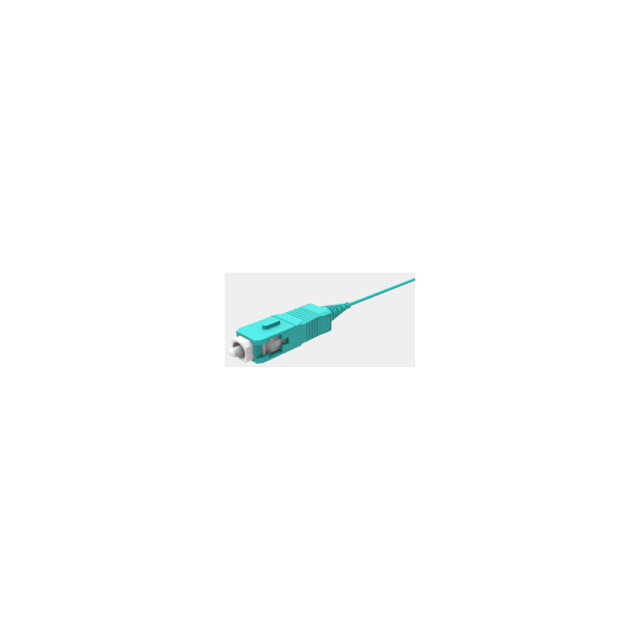

PIG-003-L-F-09-S-6
ActiveFiberSource, Inc
SCP MM OM3 SIMPLEX 0.9 MM 3M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PIG-003-L-F-09-S-6
ActiveFiberSource, Inc
SCP MM OM3 SIMPLEX 0.9 MM 3M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PIG-003-L-F-09-S-6 | PIG-003 Series |
|---|---|---|
| 1st Connector | SC/PPC | SCP, SC/PPC, SCA, LCU, SC/UPC, SC/APC |
| 2nd Connector | Cable | Cable |
| Cable Type | - | Buffered Fiber |
| Color - Cable | White | Multiple, White |
| Features | - | 6 - 12 pc |
| Fiber Type | 50/125 | 50/125 |
| Insertion Loss | - | 0.2 - 0.4 dB |
| Length - Overall [x] | 3 m | 3 m |
| Length - Overall [x] | 9.8 ft | 9.8 ft |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Return Loss | - | 55 - 65 dB |
| Type | Multimode, Simplex, OM3 | Multimode, OM3, Multimode, Simplex, OM3, Singlemode |
PIG-003 Series
SET OF 6 SCP MM OM3 BUFFERED 3M
| Part | Features | Type | Length - Overall [x] | Length - Overall [x] | Operating Temperature [Max] | Operating Temperature [Min] | 1st Connector | Cable Type | Insertion Loss | 2nd Connector | Color - Cable | Fiber Type | Return Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FiberSource, Inc PIG-003-L-F-09-S-Q | 6 pc | Multimode, OM3 | 3 m | 9.8 ft | 85 °C | -40 °C | SCP | Buffered Fiber | 0.4 dB | Cable | Multiple | ||
FiberSource, Inc PIG-003-L-F-09-S-6 | Multimode, OM3, Simplex | 3 m | 9.8 ft | 85 °C | -40 °C | SC/PPC | Cable | White | 50/125 | ||||
FiberSource, Inc PIG-003-L-F-09-S-S | 12 pc | Multimode, OM3 | 3 m | 9.8 ft | 85 °C | -40 °C | SCP | Buffered Fiber | 0.4 dB | Cable | Multiple | ||
FiberSource, Inc PIG-003-D-B-09-S-Q | 6 pc | Singlemode | 3 m | 9.8 ft | 85 °C | -40 °C | SCA | Buffered Fiber | 0.3 dB | Cable | Multiple | 55 dB | |
FiberSource, Inc PIG-003-D-B-09-S-S | 12 pc | Singlemode | 3 m | 9.8 ft | 85 °C | -40 °C | SCA | Buffered Fiber | 0.3 dB | Cable | Multiple | 55 dB | |
FiberSource, Inc PIG-003-H-B-09-S-Q | 6 pc | Singlemode | 3 m | 9.8 ft | 85 °C | -40 °C | LCU | Buffered Fiber | 0.3 dB | Cable | Multiple | 55 dB | |
FiberSource, Inc PIG-003-C-B-09-S-6 | Simplex, Singlemode | 3 m | 9.8 ft | 85 °C | -40 °C | SC/UPC | 0.2 dB | Cable | White | 55 dB | |||
FiberSource, Inc PIG-003-D-B-09-S-6 | Simplex, Singlemode | 3 m | 9.8 ft | 85 °C | -40 °C | SC/APC | 0.2 dB | Cable | White | 65 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 10 | $ 4.02 | |
| 30 | $ 3.90 | |||
| 50 | $ 3.79 | |||
| 80 | $ 3.68 | |||
| 100 | $ 3.57 | |||
| 250 | $ 3.47 | |||
| 500 | $ 3.37 | |||
| 1000 | $ 3.27 | |||
Description
General part information
PIG-003 Series
Cable Fiber Optic SC/PPC To Cable 50/125 9.8' (3.0m)
