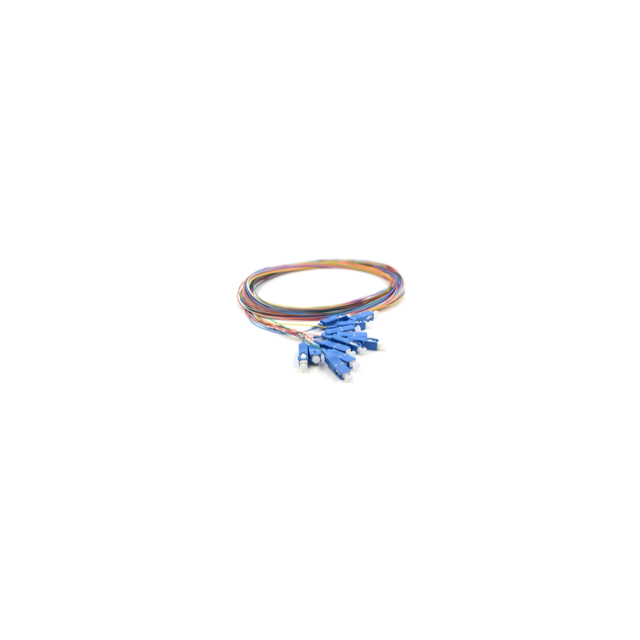

PIG-003-D-B-09-S-S

Active

FiberSource, Inc

SET OF 12 SCU SM BUFFERED 3M

Search across all available documentation for this part.

Active

FiberSource, Inc

SET OF 12 SCU SM BUFFERED 3M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Fiber Optic SCA To Cable 9.8' (3.0m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PIG-003-D-B-09-S-S	PIG-003 Series

1st Connector	SCA	SCP, SC/PPC, SCA, LCU, SC/UPC, SC/APC
2nd Connector	Cable	Cable
Cable Type	Buffered Fiber	Buffered Fiber
Color - Cable	Multiple	Multiple, White
Features	12 pc	6 - 12 pc
Fiber Type	-	50/125
Insertion Loss	0.3 dB	0.2 - 0.4 dB
Length - Overall [x]	3 m	3 m
Length - Overall [x]	9.8 ft	9.8 ft
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Return Loss	55 dB	55 - 65 dB
Type	Singlemode	Multimode, OM3, Multimode, Simplex, OM3, Singlemode

SET OF 6 SCP MM OM3 BUFFERED 3M

Part	Features	Type	Length - Overall [x]	Length - Overall [x]	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector	Cable Type	Insertion Loss	2nd Connector	Color - Cable	Fiber Type	Return Loss
FiberSource, Inc PIG-003-L-F-09-S-Q	6 pc	Multimode, OM3	3 m	9.8 ft	85 °C	-40 °C	SCP	Buffered Fiber	0.4 dB	Cable	Multiple
FiberSource, Inc PIG-003-L-F-09-S-6		Multimode, OM3, Simplex	3 m	9.8 ft	85 °C	-40 °C	SC/PPC			Cable	White	50/125
FiberSource, Inc PIG-003-L-F-09-S-S	12 pc	Multimode, OM3	3 m	9.8 ft	85 °C	-40 °C	SCP	Buffered Fiber	0.4 dB	Cable	Multiple
FiberSource, Inc PIG-003-D-B-09-S-Q	6 pc	Singlemode	3 m	9.8 ft	85 °C	-40 °C	SCA	Buffered Fiber	0.3 dB	Cable	Multiple		55 dB
FiberSource, Inc PIG-003-D-B-09-S-S	12 pc	Singlemode	3 m	9.8 ft	85 °C	-40 °C	SCA	Buffered Fiber	0.3 dB	Cable	Multiple		55 dB
FiberSource, Inc PIG-003-H-B-09-S-Q	6 pc	Singlemode	3 m	9.8 ft	85 °C	-40 °C	LCU	Buffered Fiber	0.3 dB	Cable	Multiple		55 dB
FiberSource, Inc PIG-003-C-B-09-S-6		Simplex, Singlemode	3 m	9.8 ft	85 °C	-40 °C	SC/UPC		0.2 dB	Cable	White		55 dB
FiberSource, Inc PIG-003-D-B-09-S-6		Simplex, Singlemode	3 m	9.8 ft	85 °C	-40 °C	SC/APC		0.2 dB	Cable	White		65 dB
