STA8090FGB

Active

STMicroelectronics

RF RCVR BEIDOU/GALILEO 99TFBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

STA8090FGB

Active

STMicroelectronics

RF RCVR BEIDOU/GALILEO 99TFBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STA8090FGB

Antenna Connector	PCB, Surface Mount
Applications	GPS Receiver
Data Interface	UART, SPI, I2C
Data Rate (Max) [Max]	12 Mbps
Memory Size	256 kB
Modulation or Protocol	BeiDou, GPS, GLONASS, Galileo
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

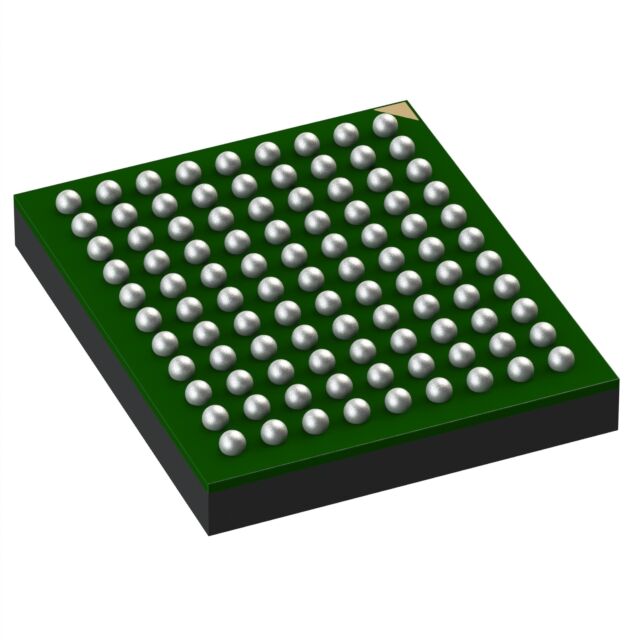

Package / Case	99-TFBGA
Sensitivity	-162 dBm
Supplier Device Package	99-TFBGA (5x6)
Voltage - Supply [Max]	1.32 V
Voltage - Supply [Min]	1.08 V

STA8090WG Series

STA8090WG - Fully Integrated GPS/Galileo/Glonass/QZSS Receiver with embedded RF

Part	Modulation or Protocol	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Data Rate (Max) [Max]	Frequency [Min]	Frequency [Max]	Mounting Type	Antenna Connector	Sensitivity	Grade	Qualification	Data Interface	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Memory Size	Features
STMicroelectronics STA8090GA	BeiDou Galileo GLONASS GNSS GPS	GPS Receiver	1.08 V	1.26 V	56-VFQFN Exposed Pad	12 Mbps	4.092 MHz 8.57 MHz 10.23 MHz	1.561 GHz 1.575 GHz 1.601 GHz	Surface Mount	PCB Surface Mount	-162 dBm	Automotive	AEC-Q100	I2C SPI UART USB	85 °C	-40 °C	56-VFQFPN (7x7)	256 kB 512 kB
STMicroelectronics STA8090EXGTR	BeiDou Galileo GLONASS GNSS GPS	GPS	1.6 V	4.3 V	169-TFBGA	12 Mbps			Surface Mount	Not Included	-162 dBm	Automotive	AEC-Q100	GPIO I2C SPI UART USB	85 °C	-40 °C	169-TFBGA (9x9)	256 kB	Analog Digital Data Multiple Channels
STMicroelectronics STA8090F4GB	BeiDou Galileo GLONASS GNSS GPS	GPS Receiver	1.08 V	1.32 V	99-TFBGA	12 Mbps	4.092 MHz 8.57 MHz 10.23 MHz	1.561 GHz 1.575 GHz 1.601 GHz	Surface Mount	PCB Surface Mount	-162 dBm	Automotive	AEC-Q100	I2C SPI UART USB	85 °C	-40 °C	99-TFBGA (5x6)	256 kB 512 kB
STMicroelectronics STA8090FGB	BeiDou Galileo GLONASS GPS	GPS Receiver	1.08 V	1.32 V	99-TFBGA	12 Mbps			Surface Mount	PCB Surface Mount	-162 dBm			I2C SPI UART	85 °C	-40 °C	99-TFBGA (5x6)	256 kB
STMicroelectronics STA8090EXGAJTR	BeiDou Galileo GLONASS GNSS GPS	General Purpose	1.08 V	1.32 V	169-TFBGA	12 Mbps	4.092 MHz 8.57 MHz 10.23 MHz	1.561 GHz 1.575 GHz 1.601 GHz	Surface Mount	PCB Surface Mount	-162 dBm			I2C SPI UART USB	85 °C	-40 °C	169-TFBGA (9x9)	256 kB 512 kB
STMicroelectronics STA8090EXGATR	BeiDou Galileo GLONASS GNSS GPS	GPS Receiver	1.08 V	1.32 V	169-TFBGA	12 Mbps	4.092 MHz 8.57 MHz 10.23 MHz	1.561 GHz 1.575 GHz 1.601 GHz	Surface Mount	PCB Surface Mount	-162 dBm	Automotive	AEC-Q100	I2C SPI UART USB	85 °C	-40 °C	169-TFBGA (9x9)	256 kB 512 kB
STMicroelectronics STA8090FGBD	BeiDou Galileo GLONASS GPS	GPS Receiver	1.08 V	1.32 V	99-TFBGA	12 Mbps			Surface Mount	PCB Surface Mount	-162 dBm			I2C SPI UART	85 °C	-40 °C	99-TFBGA (5x6)	256 kB
STMicroelectronics STA8090WG	BeiDou Galileo GLONASS GNSS GPS	GPS Receiver	1.08 V	1.32 V	77-UFBGA WLCSP	12 Mbps			Surface Mount	PCB Surface Mount	-162 dBm			I2C SPI UART USB	85 °C	-40 °C	77-WLCSP (3.86x3.84)	256 kB 512 kB
STMicroelectronics STA8090F4GBTR	BeiDou Galileo GLONASS GNSS GPS	GPS Receiver	1.08 V	1.32 V	99-TFBGA	12 Mbps	4.092 MHz 8.57 MHz 10.23 MHz	1.561 GHz 1.575 GHz 1.601 GHz	Surface Mount	PCB Surface Mount	-162 dBm	Automotive	AEC-Q100	I2C SPI UART USB	85 °C	-40 °C	99-TFBGA (5x6)	256 kB 512 kB
STMicroelectronics STA8090EXG	BeiDou Galileo GLONASS GNSS GPS	GPS Receiver	1.08 V	1.32 V	169-TFBGA	12 Mbps	4.092 MHz 8.57 MHz 10.23 MHz	1.561 GHz 1.575 GHz 1.601 GHz	Surface Mount	PCB Surface Mount	-162 dBm	Automotive	AEC-Q100	I2C SPI UART USB	85 °C	-40 °C	169-TFBGA (9x9)	256 kB 512 kB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.99
		10	$ 8.61
		25	$ 8.01
		100	$ 7.35
		364	$ 6.93
		728	$ 6.76
		1092	$ 6.68

Description

General part information

STA8090WG Series

STA8090GA belongs to Teseo III family products.

STA8090GA is a single die standalone positioning receiver IC working on multiple constellations (GPS/Galileo/GLONASS/BeiDou/QZSS).

The device is offered with a complete GNSS firmware which performs all GNSS operations including tracking, acquisition, navigation and data output.
