1488EH7

Active

Hammond Manufacturing

CONSOLE STEEL GRAY 12"L X 8"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

CONSOLE STEEL GRAY 12"L X 8"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

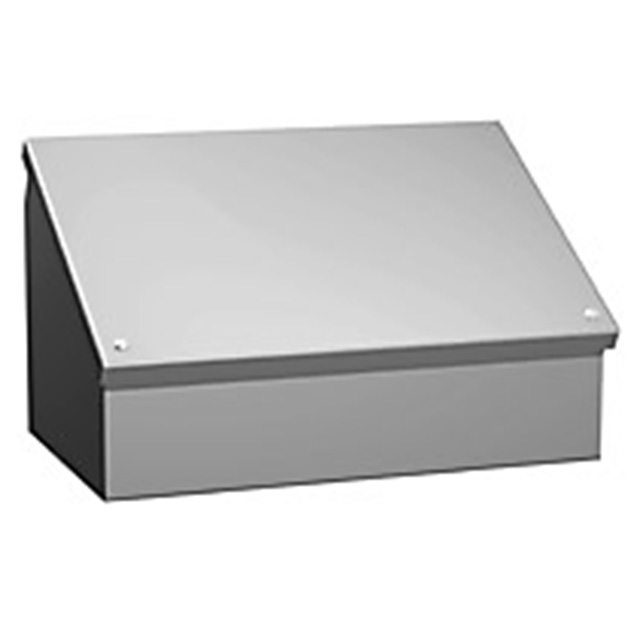

Console Metal, Steel Gray Hinged Lid, Slanted Top 12.000" L x 8.000" W (304.80mm x 203.20mm) X 7.160" (181.86mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

CONSOLE STEEL GRAY 20"L X 20"W

Part	Thickness	Ratings	Color	Features	Features	Height [z]	Height [z]	Weight	Weight	Area (L x W)	Area (L x W)	Material	Container Type	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1488LL13	14 Gauge	IP54, NEMA 12, NEMA 13, UL-508	Gray	30 °, 60 °	Slope	334.26 mm	13.16 in	16.8 kg	37 lbs	400 in²	2581 cm²	Metal, Steel	Console	Hinged Lid, Slanted Top	508 mm	20 "	20 in	508 mm
Hammond Manufacturing 1488EH7	14 Gauge	IP54, NEMA 12, NEMA 13, UL-508	Gray	30 °, 60 °	Slope	181.86 mm	7.16 in	5 kg	11 lbs	96 in˛	619 cm˛	Metal, Steel	Console	Hinged Lid, Slanted Top		12 in	8 in	304.8 mm	203.2 mm
Hammond Manufacturing 1488LQ13	14 Gauge	IP54, NEMA 12, NEMA 13, UL-508	Gray	30 °, 60 °	Slope	334.26 mm	13.16 in	21.3 kg	47 lbs			Metal, Steel	Console	Hinged Lid, Slanted Top		30 in	20 in	762 mm	508 mm	3871 cm²	600 in²
Hammond Manufacturing 1488LN13	14 Gauge	IP54, NEMA 12, NEMA 13, UL-508	Gray	30 °, 60 °	Slope	334.26 mm	13.16 in	20 kg	44 lbs	480 in²	3097 cm²	Metal, Steel	Console	Hinged Lid, Slanted Top		24 in	20 in	609.6 mm	508 mm
Hammond Manufacturing 1488JN11	14 Gauge	IP54, NEMA 12, NEMA 13, UL-508	Gray	30 °, 60 °	Slope	283.46 mm	11.16 in	17.7 kg	39 lbs	384 in²	2477 cm²	Metal, Steel	Console	Hinged Lid, Slanted Top		24 in	16 in	609.6 mm	406.4 mm
