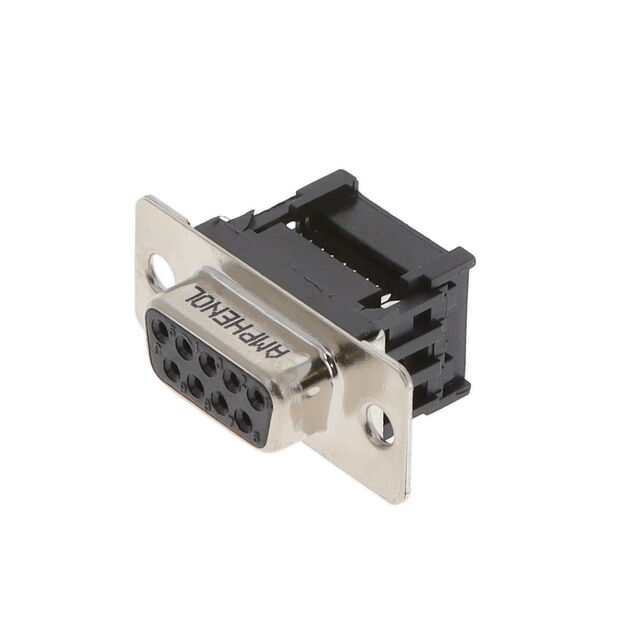

G17K09001001EU
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 9POS IDC
Deep-Dive with AI
Search across all available documentation for this part.
G17K09001001EU
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB RCPT 9POS IDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G17K09001001EU |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Feed Through, Strain Relief |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Shell Material, Finish | Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | IDC, Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.07 | |
| 10 | $ 2.79 | |||
| 25 | $ 2.64 | |||
| 50 | $ 2.58 | |||
| 100 | $ 2.45 | |||
| 250 | $ 2.15 | |||
| 500 | $ 2.09 | |||
| 1000 | $ 1.78 | |||
| 2500 | $ 1.66 | |||
Description
General part information
G17K09 Series
9 Position D-Sub Receptacle, Female Sockets Connector
