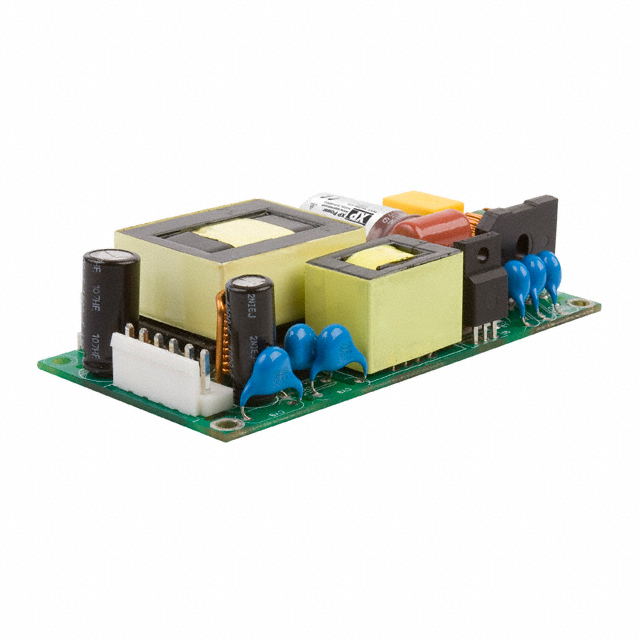

ECP180PS15
ActiveXP POWER
AC/DC CONVERTER 15V 120W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ECP180PS15 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output 1 | 8 A |
| Efficiency | 92 % |
| Features | Adjustable Output, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 120 W, 180 W |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 21.6 mm |
| Size / Dimension [z] | 0.84 " |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 108.26 | |
| 5 | $ 105.01 | |||
| 10 | $ 101.76 | |||
| 25 | $ 97.43 | |||
| 100 | $ 90.94 | |||
Description
General part information
ECP180 Series
Open Frame AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
