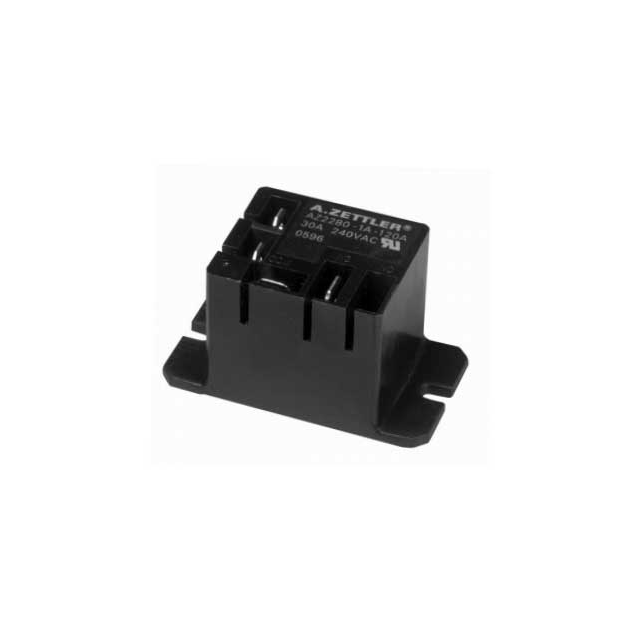

AZ2280-1C-24AEF

Active

American Zettler

RELAY GEN PURPOSE SPDT 20A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ2280-1C-24AEF

Active

American Zettler

RELAY GEN PURPOSE SPDT 20A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.80
		10	$ 4.50
		25	$ 4.00
		40	$ 3.80
		80	$ 3.60
		240	$ 3.20
		440	$ 3.00
		960	$ 2.80

Description

General part information

AZ2280-1C Series

General Purpose Relay SPDT (1 Form C) 24VAC Coil Chassis Mount

Documents

Technical documentation and resources

Datasheet

Specification	AZ2280-1C-24AEF	AZ2280-1C Series

Approval Agency	UL, VDE, cUR	UL, VDE, cUR
Coil Current	240 mA	17.8 - 240 mA
Coil Insulation	Class F	Class F
Coil Resistance	100 Ohms	13.49 - 11000 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VAC	5 - 277 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	20 A	20 A
Load - Max Switching	11080 VA, 840 W	840 - 11080 VA
Mounting Type	Chassis Mount	Chassis Mount
Must Operate Voltage	-	3.75 - 235.4 VDC
Must Release Voltage	4.8 VAC	0.5 - 55.4 VDC
Operate Time	15 ms	15 ms
Operating Temperature [Max]	60 °C	60 - 85 °C
Operating Temperature [Min]	-55 °C	-55 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	10 ms
Seal Rating	Sealed - Fully	Sealed - Fully
Switching Voltage	277 VAC, 28 VDC	28 - 277 VAC
Termination Style	Quick Connect - 0.187"/0.250"	Quick Connect - 0.187"/0.250"

Part

Contact Form

Release Time

Seal Rating

Coil Current

Relay Type

Must Operate Voltage

Termination Style

Contact Rating (Current)

Coil Type

Must Release Voltage

Approval Agency

Mounting Type

Operating Temperature [Max]

Operating Temperature [Min]

Operate Time

Coil Voltage

Coil Insulation

Coil Resistance

Contact Material

Switching Voltage

Load - Max Switching

American Zettler

AZ2280-1C-24DEF

SPDT (1 Form C)

10 ms

Sealed - Fully

36 mA

General Purpose

18 VDC

Quick Connect - 0.187"/0.250"

20 A

Non Latching

2.4 VDC

cUR, UL, VDE

Chassis Mount

85 °C

-55 °C

15 ms

24 VDC

Class F

660 Ohms

Silver Cadmium Oxide (AgCdO)

28 VDC, 277 VAC

840 W, 11080 VA

American Zettler

AZ2280-1C-277AEF

SPDT (1 Form C)

10 ms

Sealed - Fully

18.5 mA

General Purpose

235.4 VAC

Quick Connect - 0.187"/0.250"

20 A

Non Latching

55.4 VAC

cUR, UL, VDE

Chassis Mount

60 °C

-55 °C

15 ms

277 VAC

Class F

15 kOhms

Silver Cadmium Oxide (AgCdO)

28 VDC, 277 VAC

840 W, 11080 VA

American Zettler

AZ2280-1CE-24DEF

SPDT (1 Form C)

10 ms

Sealed - Fully

36 mA

General Purpose

18 VDC

Quick Connect - 0.187"/0.250"

20 A

Non Latching

2.4 VDC

cUR, UL, VDE

Chassis Mount

85 °C

-55 °C

15 ms

24 VDC

Class F

660 Ohms

Silver Tin Oxide (AgSnO)

28 VDC, 277 VAC

840 W, 11080 VA

American Zettler

AZ2280-1C-120AEF

SPDT (1 Form C)

10 ms

Sealed - Fully

48 mA

General Purpose

102 VAC

Quick Connect - 0.187"/0.250"

20 A

Non Latching

24 VAC

cUR, UL, VDE

Chassis Mount

60 °C

-55 °C

15 ms

120 VAC

Class F

2500 Ohms

Silver Cadmium Oxide (AgCdO)

28 VDC, 277 VAC

840 W, 11080 VA

American Zettler

AZ2280-1C-120AKF

SPDT (1 Form C)

10 ms

48 mA

General Purpose

102 VAC

Quick Connect - 0.187"/0.250"

20 A

Non Latching

24 VAC

cUR, UL, VDE

Chassis Mount

60 °C

-55 °C

15 ms

120 VAC

Class F

2500 Ohms

Silver Cadmium Oxide (AgCdO)

28 VDC, 277 VAC

840 W, 11080 VA

American Zettler

AZ2280-1CE-48DE

SPDT (1 Form C)

10 ms

Sealed - Fully

19 mA

General Purpose

36 VDC

Quick Connect - 0.187"/0.250"

20 A

Non Latching

4.8 VDC

cUR, UL, VDE

Chassis Mount

85 °C

-55 °C

15 ms

48 VDC

Class F

2560 Ohms

Silver Tin Oxide (AgSnO)

28 VDC, 277 VAC

840 W, 11080 VA

American Zettler

AZ2280-1C-12DE

SPDT (1 Form C)

10 ms

Sealed - Fully

77 mA

General Purpose

9 VDC

Quick Connect - 0.187"/0.250"

20 A

Non Latching

1.2 VDC

cUR, UL, VDE

Chassis Mount

85 °C

-55 °C

15 ms

12 VDC

Class F

155 Ohms

Silver Cadmium Oxide (AgCdO)

28 VDC, 277 VAC

840 W, 11080 VA

American Zettler

AZ2280-1C-24AEF

SPDT (1 Form C)

10 ms

Sealed - Fully

240 mA

General Purpose

Quick Connect - 0.187"/0.250"

20 A

Non Latching

4.8 VAC

cUR, UL, VDE

Chassis Mount

60 °C

-55 °C

15 ms

24 VAC

Class F

100 Ohms

Silver Cadmium Oxide (AgCdO)

28 VDC, 277 VAC

840 W, 11080 VA

American Zettler

AZ2280-1CE-28D

SPDT (1 Form C)

10 ms

General Purpose

Quick Connect - 0.187"/0.250"

20 A

Non Latching

2.8 VDC

cUR, UL, VDE

Chassis Mount

85 °C

-55 °C

15 ms

28 VDC

Class F

Silver Tin Oxide (AgSnO)

28 VDC, 277 VAC

840 W, 11080 VA

American Zettler

AZ2280-1CE-5D

SPDT (1 Form C)

10 ms

185 mA

General Purpose

3.75 VDC

Quick Connect - 0.187"/0.250"

20 A

Non Latching

0.5 VDC

cUR, UL, VDE

Chassis Mount

85 °C

-55 °C

15 ms

5 VDC

Class F

27 Ohms

Silver Tin Oxide (AgSnO)

28 VDC, 277 VAC

840 W, 11080 VA

Part	Contact Form	Release Time	Seal Rating	Coil Current	Relay Type	Must Operate Voltage	Termination Style	Contact Rating (Current)	Coil Type	Must Release Voltage	Approval Agency	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Coil Voltage	Coil Insulation	Coil Resistance	Contact Material	Switching Voltage	Load - Max Switching
American Zettler AZ2280-1C-24DEF	SPDT (1 Form C)	10 ms	Sealed - Fully	36 mA	General Purpose	18 VDC	Quick Connect - 0.187"/0.250"	20 A	Non Latching	2.4 VDC	cUR, UL, VDE	Chassis Mount	85 °C	-55 °C	15 ms	24 VDC	Class F	660 Ohms	Silver Cadmium Oxide (AgCdO)	28 VDC, 277 VAC	840 W, 11080 VA
American Zettler AZ2280-1C-277AEF	SPDT (1 Form C)	10 ms	Sealed - Fully	18.5 mA	General Purpose	235.4 VAC	Quick Connect - 0.187"/0.250"	20 A	Non Latching	55.4 VAC	cUR, UL, VDE	Chassis Mount	60 °C	-55 °C	15 ms	277 VAC	Class F	15 kOhms	Silver Cadmium Oxide (AgCdO)	28 VDC, 277 VAC	840 W, 11080 VA
American Zettler AZ2280-1CE-24DEF	SPDT (1 Form C)	10 ms	Sealed - Fully	36 mA	General Purpose	18 VDC	Quick Connect - 0.187"/0.250"	20 A	Non Latching	2.4 VDC	cUR, UL, VDE	Chassis Mount	85 °C	-55 °C	15 ms	24 VDC	Class F	660 Ohms	Silver Tin Oxide (AgSnO)	28 VDC, 277 VAC	840 W, 11080 VA
American Zettler AZ2280-1C-120AEF	SPDT (1 Form C)	10 ms	Sealed - Fully	48 mA	General Purpose	102 VAC	Quick Connect - 0.187"/0.250"	20 A	Non Latching	24 VAC	cUR, UL, VDE	Chassis Mount	60 °C	-55 °C	15 ms	120 VAC	Class F	2500 Ohms	Silver Cadmium Oxide (AgCdO)	28 VDC, 277 VAC	840 W, 11080 VA
American Zettler AZ2280-1C-120AKF	SPDT (1 Form C)	10 ms		48 mA	General Purpose	102 VAC	Quick Connect - 0.187"/0.250"	20 A	Non Latching	24 VAC	cUR, UL, VDE	Chassis Mount	60 °C	-55 °C	15 ms	120 VAC	Class F	2500 Ohms	Silver Cadmium Oxide (AgCdO)	28 VDC, 277 VAC	840 W, 11080 VA
American Zettler AZ2280-1CE-48DE	SPDT (1 Form C)	10 ms	Sealed - Fully	19 mA	General Purpose	36 VDC	Quick Connect - 0.187"/0.250"	20 A	Non Latching	4.8 VDC	cUR, UL, VDE	Chassis Mount	85 °C	-55 °C	15 ms	48 VDC	Class F	2560 Ohms	Silver Tin Oxide (AgSnO)	28 VDC, 277 VAC	840 W, 11080 VA
American Zettler AZ2280-1C-12DE	SPDT (1 Form C)	10 ms	Sealed - Fully	77 mA	General Purpose	9 VDC	Quick Connect - 0.187"/0.250"	20 A	Non Latching	1.2 VDC	cUR, UL, VDE	Chassis Mount	85 °C	-55 °C	15 ms	12 VDC	Class F	155 Ohms	Silver Cadmium Oxide (AgCdO)	28 VDC, 277 VAC	840 W, 11080 VA
American Zettler AZ2280-1C-24AEF	SPDT (1 Form C)	10 ms	Sealed - Fully	240 mA	General Purpose		Quick Connect - 0.187"/0.250"	20 A	Non Latching	4.8 VAC	cUR, UL, VDE	Chassis Mount	60 °C	-55 °C	15 ms	24 VAC	Class F	100 Ohms	Silver Cadmium Oxide (AgCdO)	28 VDC, 277 VAC	840 W, 11080 VA
American Zettler AZ2280-1CE-28D	SPDT (1 Form C)	10 ms			General Purpose		Quick Connect - 0.187"/0.250"	20 A	Non Latching	2.8 VDC	cUR, UL, VDE	Chassis Mount	85 °C	-55 °C	15 ms	28 VDC	Class F		Silver Tin Oxide (AgSnO)	28 VDC, 277 VAC	840 W, 11080 VA
American Zettler AZ2280-1CE-5D	SPDT (1 Form C)	10 ms		185 mA	General Purpose	3.75 VDC	Quick Connect - 0.187"/0.250"	20 A	Non Latching	0.5 VDC	cUR, UL, VDE	Chassis Mount	85 °C	-55 °C	15 ms	5 VDC	Class F	27 Ohms	Silver Tin Oxide (AgSnO)	28 VDC, 277 VAC	840 W, 11080 VA
