1241434-1
ActiveTE Connectivity AMP Connectors

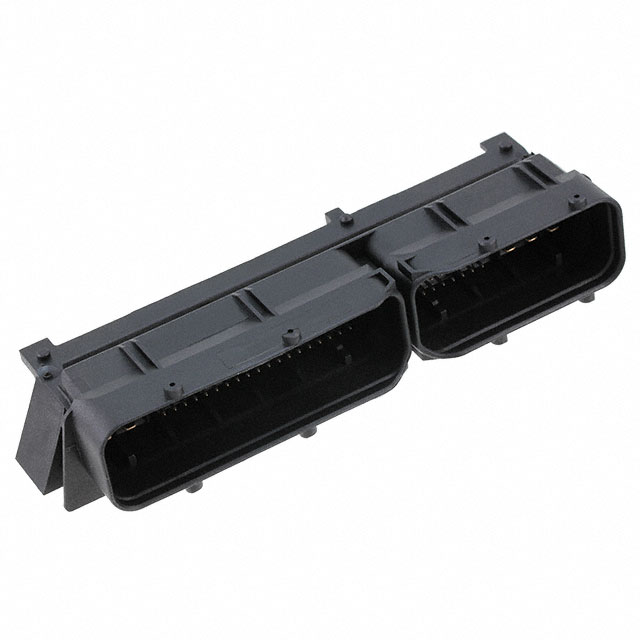

CONN HEADER R/A 121POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241434-1
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 121POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241434-1 | 1241434 Series |
|---|---|---|
| - | - | |
| Applications | Automotive | Automotive |
| Connector Type | Header | Header |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Holder | Latch Holder |
| Insulation Color | Black | Black |
| Insulation Height | 1.224 in | 1.224 in |
| Insulation Height | 31.1 mm | 31.1 mm |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 121 | 121 |
| Number of Positions Loaded | All | All |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.91 | |
| 72 | $ 13.52 | |||
| 144 | $ 12.19 | |||
| 504 | $ 10.13 | |||
| 1008 | $ 9.64 | |||
1241434 Series
MOD2ST/FLA-ST108+13
| Part | Connector Type | Applications | Number of Positions Loaded | Insulation Color | Number of Positions | Shrouding | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Style | Insulation Height | Insulation Height | Contact Finish - Post | Contact Shape | Fastening Type | Termination | Contact Type | Insulation Material | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1241434-2 | |||||||||||||||||||
TE Connectivity AMP Connectors 1241434-1 | Header | Automotive | All | Black | 121 | Shrouded - 4 Wall | Through Hole, Right Angle | -40 °C | 120 °C | Board to Cable/Wire | 1.224 in | 31.1 mm | Tin | Square | Latch Holder | Solder | Male Pin | Polyamide (PA66), Nylon 6/6, Glass Filled | Copper Alloy |
Description
General part information
1241434 Series
Connector Header Through Hole, Right Angle 121 (108 + 13 Power) position
