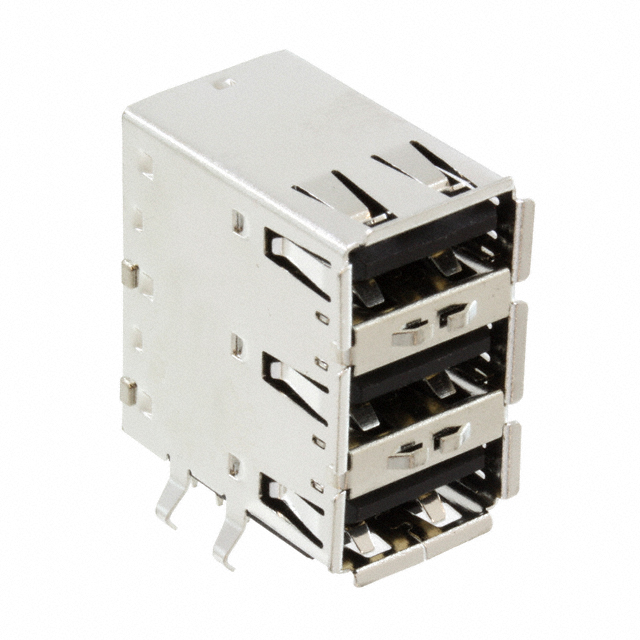

33UBAR-TSN1R

Active

Amphenol CONEC

CONN RCPT TYPEA STACKED 12POS RA

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN RCPT TYPEA STACKED 12POS RA

Technical Specifications

Parameters and characteristics for this part

Specification	33UBAR-TSN1R

Connector Type	USB-A (USB TYPE-A), Stacked
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Gender	Receptacle
Material Flammability Rating	UL94 V-0
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts	12
Number of Ports	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Shell/Shielding Material	Brass
Shielding	Unshielded
Termination	Solder

Part	Current Rating (Amps)	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Termination	Shielding	Contact Finish	Mounting Type	Shell/Shielding Material	Number of Contacts	Gender	Connector Type	Material Flammability Rating	Voltage - Rated	Insulation Color	Number of Contacts [custom]
Amphenol CONEC 33UBAR-TSN1R	1.5 A	Horizontal	85 °C	-20 C	3	Solder	Unshielded	Gold	Through Hole Right Angle	Brass	12	Receptacle	Stacked USB-A (USB TYPE-A)	UL94 V-0
Amphenol CONEC 33UBARS1-04SW11	1.5 A	Horizontal	85 °C	-55 °C	1	Solder	Unshielded	Gold	Surface Mount Right Angle	Copper Alloy		Receptacle	USB-A (USB TYPE-A)	UL94 V-0	30 VAC	White	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-A (USB TYPE-A), Stacked Receptacle Connector 12 Position Through Hole, Right Angle
