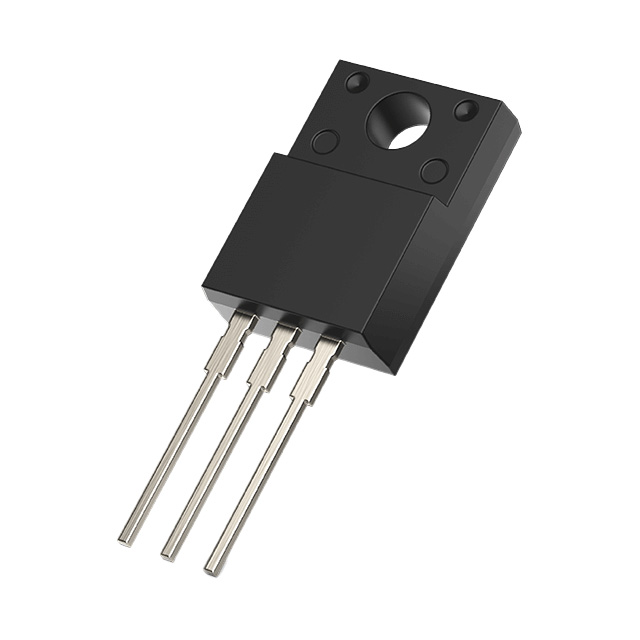

FCHS20A08
ActiveKyocera AVX
DIODE ARR SCHOT 80V 20A TO220 FM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FCHS20A08
ActiveKyocera AVX
DIODE ARR SCHOT 80V 20A TO220 FM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FCHS20A08 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 20 A |
| Current - Reverse Leakage @ Vr | 150 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -40 °C |
| Package / Case | TO-220-3 Full Pack |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO-220 Full-Mold |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 80 V |
| Voltage - Forward (Vf) (Max) @ If | 750 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.65 | |
| 50 | $ 0.79 | |||
| 100 | $ 0.78 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.60 | |||
| 2000 | $ 0.60 | |||
| 5000 | $ 0.57 | |||
| 10000 | $ 0.56 | |||
Description
General part information
FCHS20 Series
Diode Array 80 V 20A Through Hole TO-220-3 Full Pack
