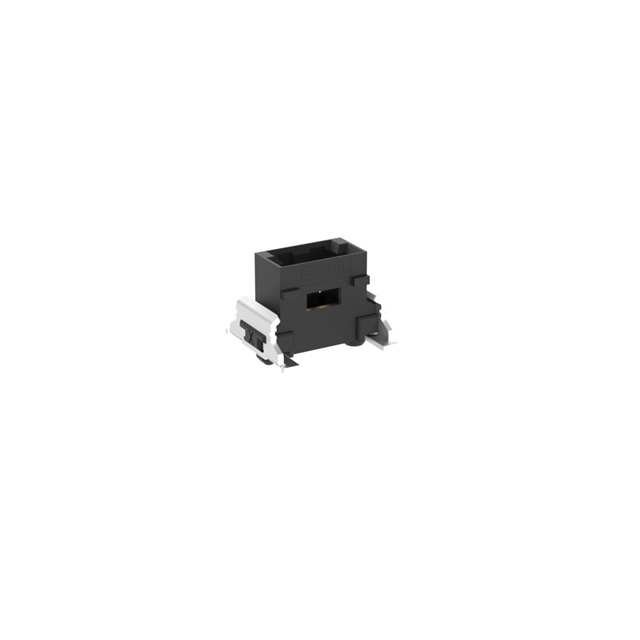

284695-E
ActiveTE Connectivity Raychem Cable Protection
SRCP 1,27 2 M 1 SMD 137 E1 094 * GU-H *
Deep-Dive with AI
Search across all available documentation for this part.
284695-E
ActiveTE Connectivity Raychem Cable Protection
SRCP 1,27 2 M 1 SMD 137 E1 094 * GU-H *
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 284695-E |
|---|---|
| Applications | General Purpose |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 5.4 A |
| Insulation Color | Black |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.91 | |
| 10 | $ 1.62 | |||
| 25 | $ 1.52 | |||
| 50 | $ 1.44 | |||
| 100 | $ 1.38 | |||
| 250 | $ 1.29 | |||
| Tape & Reel (TR) | 650 | $ 1.21 | ||
| 1300 | $ 1.15 | |||
| 1950 | $ 1.12 | |||
| 3250 | $ 1.08 | |||
| 4550 | $ 1.05 | |||
| 6500 | $ 1.02 | |||
Description
General part information
ERNI MiniBridge Series
PCB Mount Header, Vertical, Cable-to-Board, 2 Position, 1.27 mm [.05 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI MiniBridge
