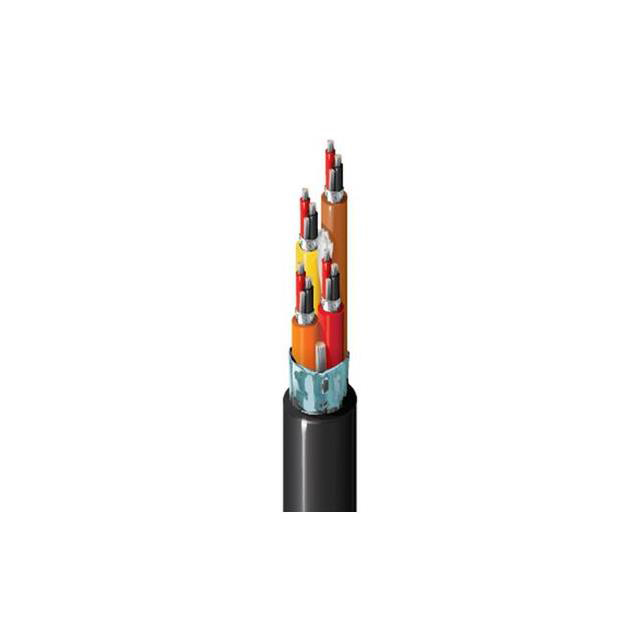

1514C B59500

Active

Belden Inc.

16 PR #24 PO FS PVC FS PVC

Search across all available documentation for this part.

Active

Belden Inc.

16 PR #24 PO FS PVC FS PVC

Technical Specifications

Parameters and characteristics for this part

Specification	1514C B59500

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	15.95 mm
Jacket (Insulation) Diameter [diameter]	0.628 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.056 in
Jacket (Insulation) Thickness	1.422 mm
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	32
Number of Conductors [custom]	16
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-35 °C
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Audio
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Features	Conductor Insulation	Shield Material	Jacket (Insulation) Material	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Cable Type	Conductor Material	Shield Coverage	Length [x]	Length [x]	Number of Conductors	Number of Conductors [custom]
Belden Inc. 1514C B59500	0.056 in	1.422 mm	Foil	32 AWG	7	Drain Wire Rip Cord	Polypropylene (PP)	Aluminum Polyester	Poly-Vinyl Chloride (PVC)	300 V	-35 °C	75 ░C	Audio	Black	15.95 mm	0.628 in	24 AWG	Multi-Pair	Copper Tinned	100 %	500 '	152.4 m	32	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

32 (16 Pair) Conductor Multi-Pair Cable Black 24 AWG Foil 500.0' (152.4m)
